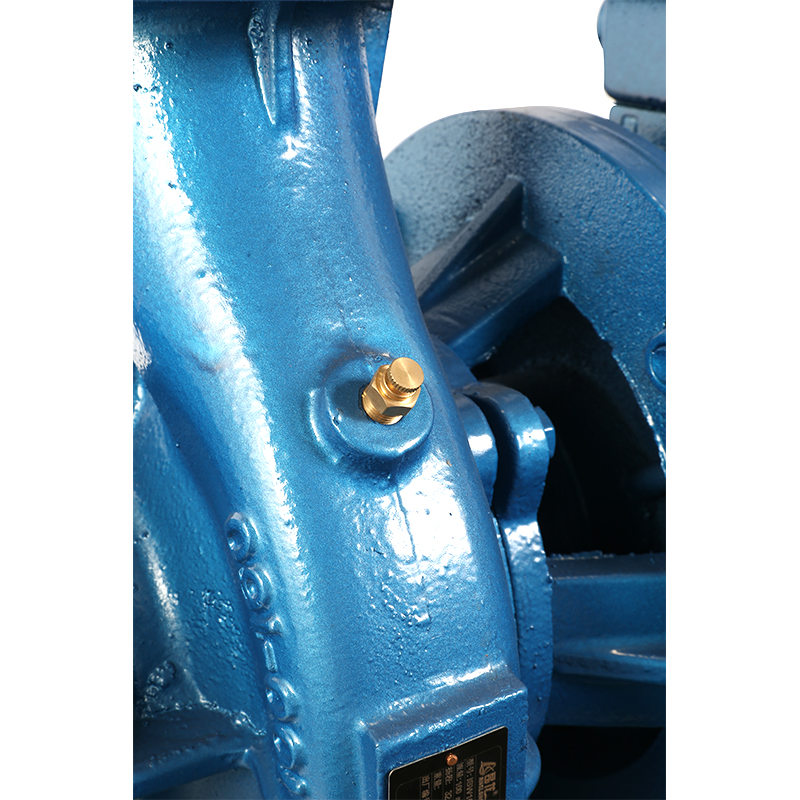

OEM/ODM ISW Series Single Pole Horizontal Pipeline Centrifugal Pump

Home / Product / Sewage Pump / ISW Series Single Pole Horizontal Pipeline Centrifugal Pump

Product



News

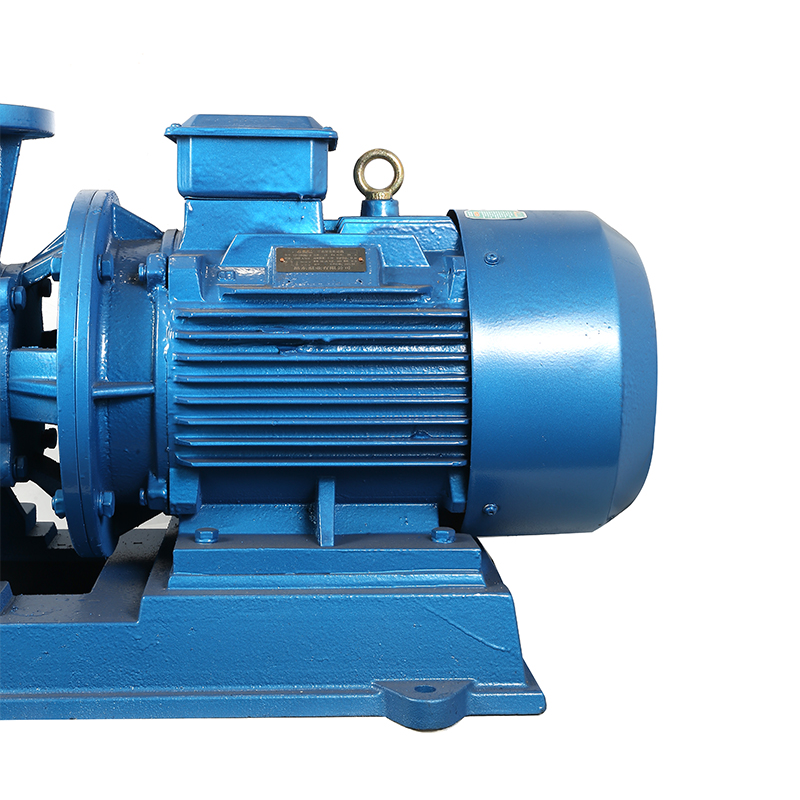

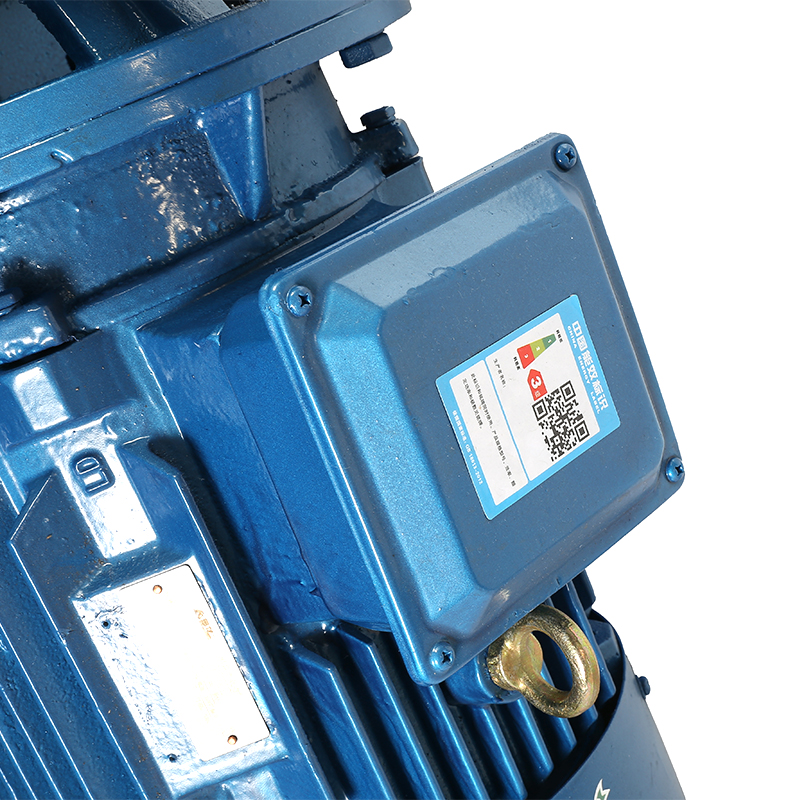

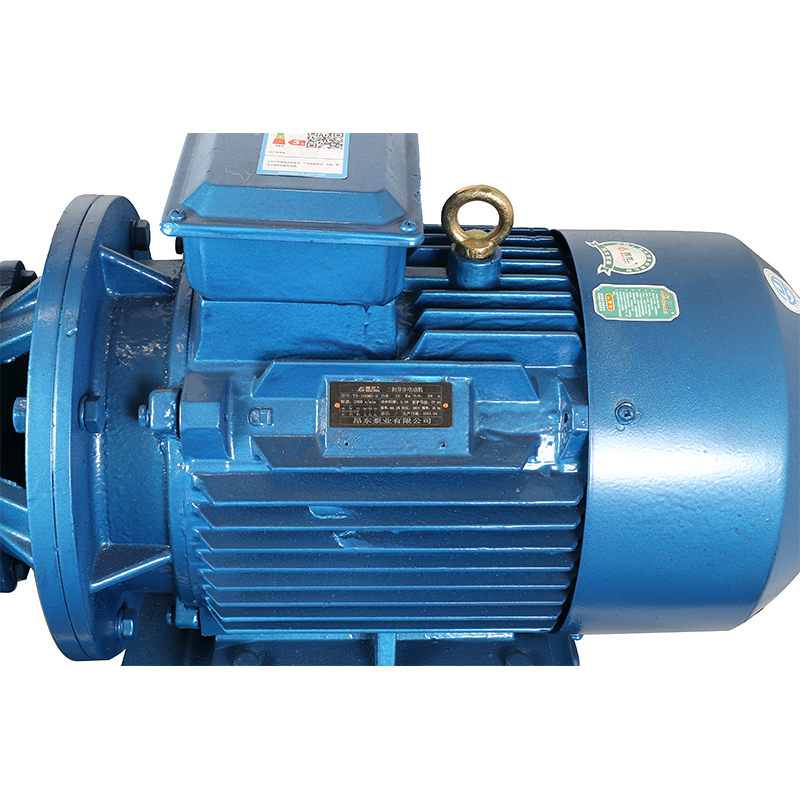

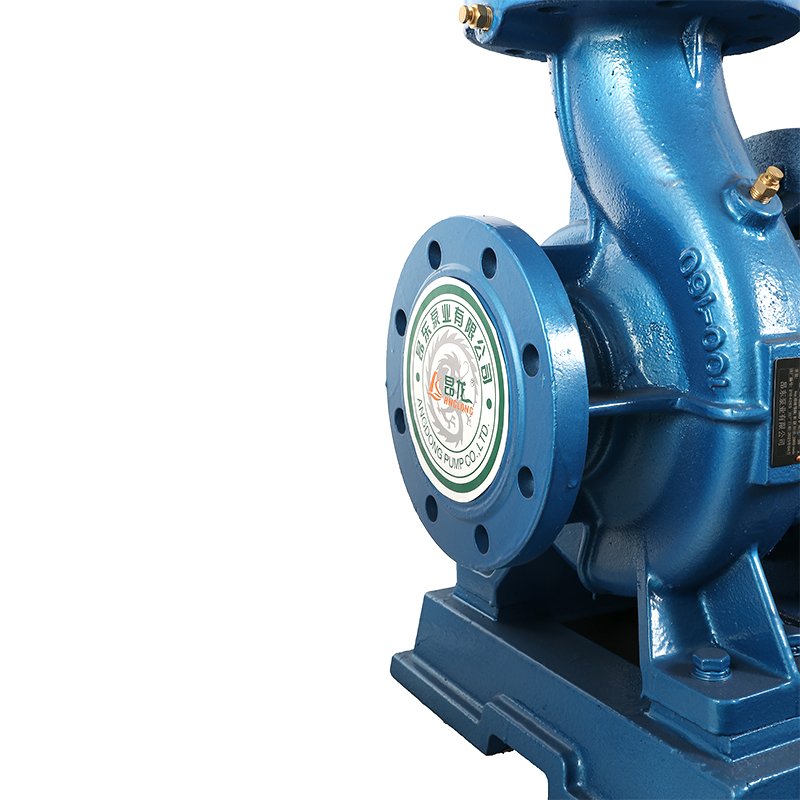

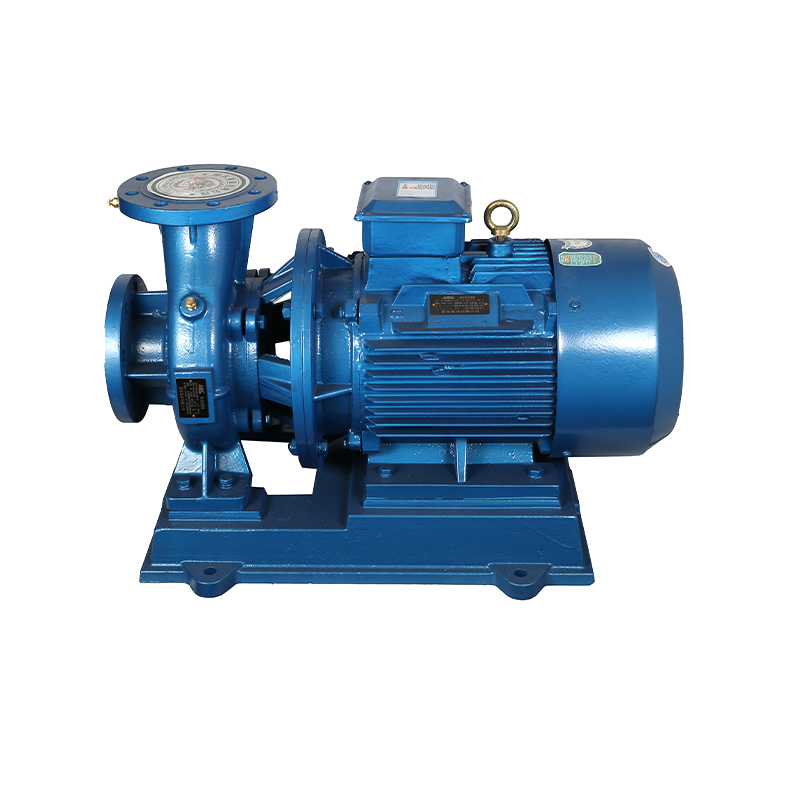

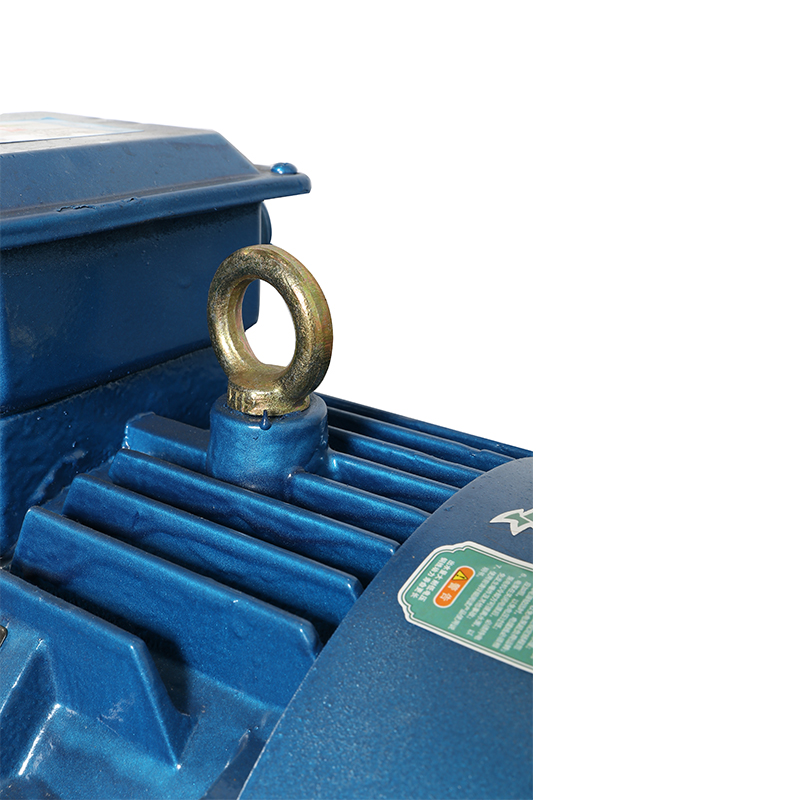

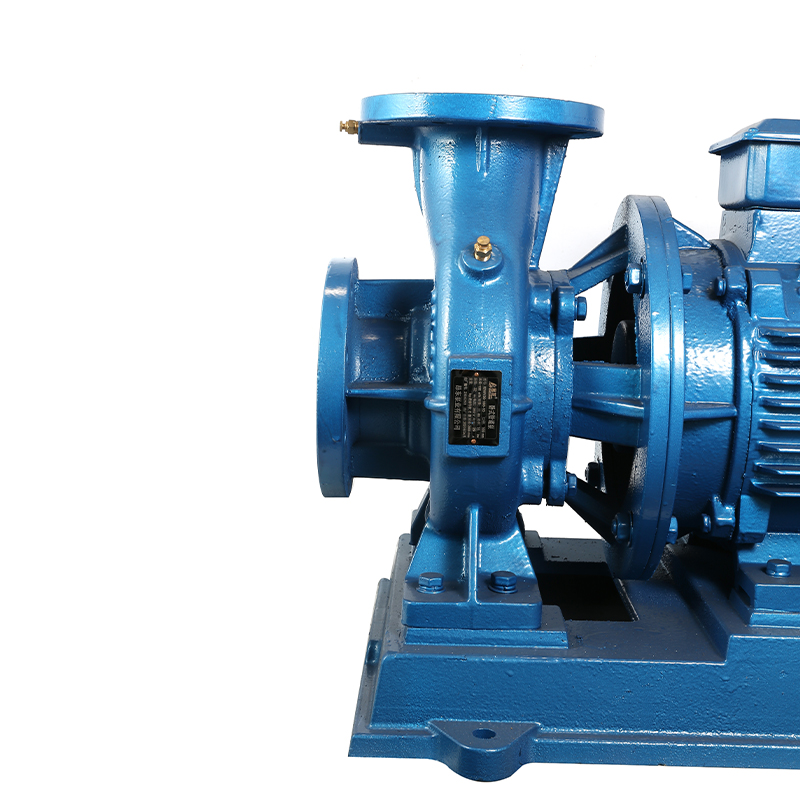

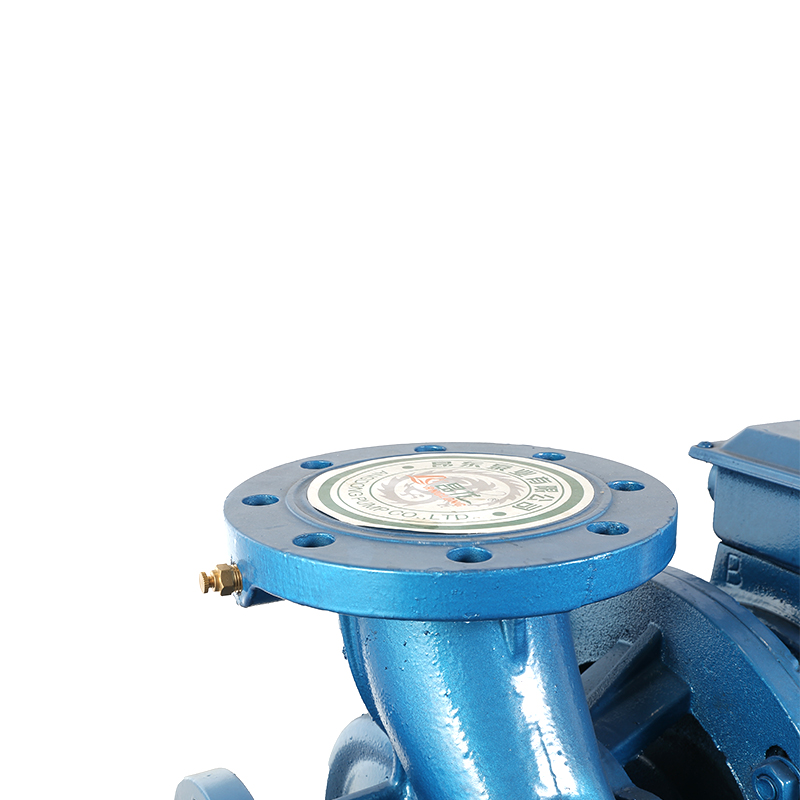

ISW Series Single Pole Horizontal Pipeline Centrifugal Pump Manufacturers

Product description:
Smooth operation: the absolute concentricity of the pump shaft is ensured by the excellent dynamic and static balance of the impeller.It guarantees smooth operation and absolutely no vibration.
No water leakage: Carbide seals of different materials ensure the transmission of different media.
Delivery without noise.
Low noise: The water pump supported by two low-noise shafts is used to run smoothly, except The motor makes a faint sound, basically no noise.
Low failure rate: The structure is simple and reasonable, and the trouble-free working time of the whole machine is greatly improved.
Easy maintenance: replacement of seals, bearings, simple and convenient.

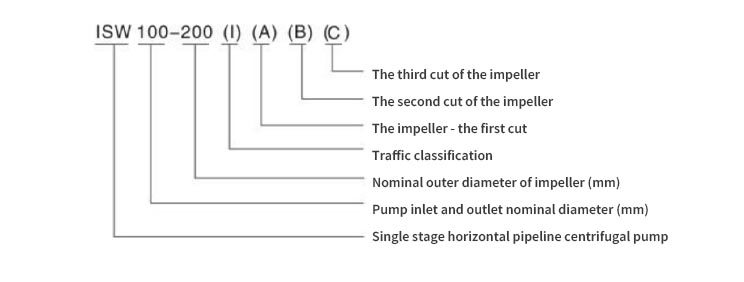

Model meaning:

Working conditions:
1. The suction pressure is less than or equal to 1.0MPa, or the maximum working pressure of the pump system is less than or equal to 1.6MPa,That is, the suction port pressure of the pump body + the pump head ≤ 1.6MPa, and the pump static pressure testThe pressure is 1.6MPa, please specify the system working pressure when ordering. pump system If the working pressure is greater than 1.6MPa, it should be put forward separately when ordering. byThe overflow part and connection of the pump are made of cast steel during manufacture.
2. Ambient temperature <40C, relative temperature <95%.
3. The volume content of solid particles in the conveyed medium does not exceed 0.1% of the unit volume, Particle size <0.2mm.
Note: If the medium has fine particles, please specify it when ordering, so that the factory can The home adopts wear-resistant mechanical seal.
The main purpose:
1. ISW type horizontal pipeline centrifugal pump is used for conveying clean water and other liquids with similar physical and chemical properties to clean water, suitable for industrial and urban Water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water cycle Ring pressurization and equipment matching, operating temperature T: ≤ 80C.
2. ISW type horizontal hot water is widely used in: metallurgy, chemical industry, textile, papermaking, and high temperature hot water for boilers in hotels and restaurants Pressurized circulating conveying and urban heating system, ISWR type using temperature T<120C.
3. IHW stainless steel horizontal pipeline centrifugal pump is used for conveying liquid without solid particles, which is corrosive and whose viscosity is similar to water. It is suitable for petroleum, Chemical, metallurgy, electric power, paper, food, pharmaceutical and synthetic fiber departments, the operating temperature is: -20C-+120C.
Technical parameter(Two poles)
No. Model Flow Head Power Voltage Rotating speed No. Model Flow Head Power Voltage Rotating speed
(m3/h) (L/s) (m3/h) (L/s)
1 25-125 4 1.1 20 0.75 380 2860 51 50-100(1) 25 6.9 12.5 1.5 380 2860
2 25-160 4 11 32 15 380 2860 52 50-100(1A 22.4 6.2 10 1.1 380 2860
3 25-160A 3.7 10 28 11 380 2860 53 50-125(1) 25 6.9 20 3 380 2860
4 32-125 45 13 20 0.75 380 2860 54 50-125(hA 224 6.2 16 22 380 2860
5 32-160 45 13 32 1.5 380 2860 55 50-160(l) 25 6.9 32 4 380 2860
6 32-160A 4 11 25 1.1 380 2860 56 50-160(l)A 234 6.5 28 4 380 2860
7 32-200 45 13 50 3 380 2860 57 50-160(l)8 21.6 6 24 3 380 2860
8 32-200A 4 11 40 22 380 2860 58 50-200(l) 25 69 50 75 380 2900
9 32-100(l) 6.3 1.8 12.5 0.75 380 2850 59 50-200(l)A 23.4 6.5 44 7.5 380 2900
10 32-125(l) 63 18 20 11 380 2860 60 50-200(l)B 216 6 37 5.5 380 2900
11 32-160(l) 6.3 1.8 32 2.2 380 2860 61 50-250(l) 25 6.9 80 15 380 2900
12 30-200(l) 6.3 1.8 50 4 380 2860 62 50-250(l)A 23.4 6.5 70 11 380 2900
13 40-100 6.3 1.8 12.5 0.75 380 2860 63 50-250(l)B 216 9 9 11 380 2900
14 40-125 6.3 18 20 1.1 380 2860 64 50-315(l) 25 6.9 125 30 380 2900
15 40-125A 5.6 1.6 16 0.75 380 2860 65 50-315(l)A 23.4 6.5 110 22 380 2900
16 40-160 63 18 32 22 380 2860 66 50-31518 216 9 93 18.5 380 2900
17 40-160A 5.9 1.6 28 1.5 380 2860 67 65-100 25 69 12.5 1.5 380 2860
18 40-1608 52 14 24 11 380 2860 68 65-100A 224 62 10 11 380 2860
19 40-200 6.3 1.8 50 4 380 2860 69 65-125 25 6.9 20 3 380 2860
20 40-200A 59 16 44 3 380 2860 70 65-125A 224 62 16 22 380 2860
21 40-200B 5.5 1.5 38 2.2 380 2860 71 65-160 25 6.9 32 4 380 2860
22 40-250 6.3 18 80 75 380 2900 72 65-160A 23.4 6.5 28 4 380 2860
23 40-250A 5.9 1.6 70 55 380 62 73 65-1608 216 6 24 3 380 2860
24 40-250B 5.5 15 60 4 380 2860 74 65-200 25 69 50 7.5 380 2900
25 40-100(l) 12.5 3.5 125 11 380 2860 75 65-200A 23.4 6.5 44 7.5 380 2900
26 40-125(l) 12.5 35 20 15 380 2860 76 65-2008 21.6 6 37 5.5 380 2900
27 40-125(l)A 11.2 3.1 172 1.1 380 2860 77 65-250 25 6.9 80 15 380 2900
28 40-16040 125 35 32 3 380 2860 78 65-250A 234 6.5 70 11 380 2900
29 40-160(l)A 117 3.3 28 22 380 2860 79 65-2508 216 6 60 11 380 2900
30 40-160(l)B 10.5 2.9 22.5 1.5 380 2860 80 65-315 25 6.9 125 30 380 2900
31 40-200(l) 12.5 3.5 50 5.5 380 2900 81 65-315A 23.4 6.5 110 22 380 2900
32 40~200(l)A 117 33 40 4 380 2860 82 65-315B 216 6 93 18.5 380 2900
33 40-200(l)B 10.5 29 35 3 380 2860 83 65-100(I) 50 13.9 125 3 380 2860
34 40-250(l) 12.5 35 80 11 380 2900 84 65-100(I)A 44.8 12.4 10 22 380 2860
35 40-250(l)A 11.7 3.3 70 7.5 380 2900 85 65-125(I) 50 13.9 20 5.5 380 2900
36 40-250(l)B 10.8 30 60 75 380 2900 86 65-125(I)A 448 12.4 16 4 380 2860
37 50-100 12.5 3.5 12.5 1.1 380 2860 87 65-160(I) 50 13.9 32 7.5 380 2900
38 50-100A 11.2 3.1 10 0.75 380 2860 88 65-160(I)A 458 13 28 7.5 380 2900
39 50-125 12.5 3.5 20 1.5 380 2860 89 65-160(I)B 43.2 12 24 5.5 380 2900
40 50-125A 11.2 3.1 17.2 1.1 380 2860 90 65-200(I) 50 13.9 50 15 380 2900
41 50-160 12.5 3.5 32 3 380 2860 91 65-200(I)A 46.8 13 44 11 380 2860
42 50-160A 11.7 3.3 28 22 380 2860 92 65-200(I)B 43 11.9 37 7.5 380 2900
43 50-1608 10.5 2.9 22.5 1.5 380 2860 93 65-250(I) 50 13.9 80 22 380 2900
44 50-200 12.5 35 50 55 380 2900 94 65-250(I)A 468 13 70 18.5 380 2900
45 50-200A 117 3.3 44.5 4 380 2860 95 65-250(I)B 43 119 60 15 380 2900
46 50-200B 10.8 29 35 3 380 2860 96 65-315(I) 50 13.9 125 37 380 2900
47 50-250 12.5 3.5 80 11 380 2900 97 65-315(I)A 45.8 12.7 105 30 380 2900
48 50-250A 117 33 70 75 380 2900 98 65-315(I)B 43 11.9 93 30 380 2900
49 50-250B 10.8 3 9 7.5 380 2900 99 80-100 50 13.9 12.5 3 380 2860
50 50-250C 10 2.8 52 55 380 2900 100 80-100A 44.8 12.4 10 2.2 380 2860
Technical parameter(Two poles)

No. Model Flow Head Power Voltage Rotating speed No. Model Flow Head Power Voltage Rotating speed
(m3/h) (L/s) (m3/h) (L/s)
101 80-125 50 13.9 20 5.5 380 2900 151 100-315B 86.4 24 93 45 380 2900
102 80-125A 44.8 12.4 16 4 380 2860 152 100-350 100 27.8 150 90 380 2860
103 80-160 50 13.9 32 7.5 380 2900 153 100-350A 88 24.4 142 75 380 2900
104 80-160A 46.8 13 28 7.5 380 2900 154 100-350B 80 222 135 55 380 2900
105 80-160B 43.2 12 24 5.5 380 2900 155 100-100(l) 160 44.4 12.5 11 380 2900
106 80-200 50 13.9 50 15 380 2900 156 100-125(l) 160 44.4 20 15 380 2900
107 80-200A 46.8 13 44 11 380 2900 157 100-125(l)A 143 39.7 16 11 380 2900
108 B0-200B 43 11.9 37 7.5 380 2900 158 100-160(l) 91 444 32 22 380 2900
109 80-250 50 13.9 80 22 380 2900 159 100-160(l)A 150 41.7 28 18.5 380 2900
110 80-250A 6.8 13 70 18.5 380 2900 160 100-200 160 44.4 50 37 380 2900
111 80-250B 43 11.9 60 15 380 2900 161 100-200(l)A 150 41.7 44 30 380 2900
112 80-315 50 13.9 125 37 380 2900 162 100-200B 138 383 37 22 380 2900
113 80-315A 45.8 12.7 105 30 380 2900 163 100-250(l) 160 44.4 80 55 380 2900
114 80-315B 43 11.9 93 30 380 2900 164 100-250(l)A 150 417 70 45 380 2900
115 80-315C 41 11.4 85 22 380 2900 165 100-250(l)B 138 38.3 60 37 380 2900
116 80-350 50 13.9 150 55 380 2900 166 125-100 30 44.4 12.5 11 380 2900
117 80-350A 44 12.2 142 45 380 2900 167 125-100A 143 397 10 7.5 380 2900
118 80-350B 40 11.1 135 37 380 2900 168 125-125 *60 444 20 15 380 2900
119 80-100(l) 100 27.8. 125 5.5 380 2900 169 125-125A 143 39.7 16 11 380 2900
120 80-100(l)A 89 24.7 10 4 380 2860 170 125-160 160 444 32 22 380 2860
121 80-125(l) 100 27.8 20 11 380 2900 171 125-160A 150 41.7 28 18.5 380 2900
122 80-125(l)A 89 24.7 16 75 380 2900 172 125-1608 138 35.3 24.5 15 380 2900
123 80-160(l) 100 27.8 32 15 380 2900 173 125-200 160 44.4 50 37 380 2900
124 80-160(l)A 93.5 26.0  28 11 380 2900 174 125-200A 150 417 44 30 380 2900
125 80-160(l)B 86.4 24.0  24 11 380 2900 175 125-2008 138 38.3 37.5 22 380 2900
126 80-200(l) 100 27.8 50 22 380 2900 176 125-250 160 44.4 9 55 380 2900
127 80-200(l)A 93.5 26.0  44 18.5 380 2900 177 125-250A 150 41.7 70 45 380 2900
128 80-200(l)B 86.4 24.0  37 15 380 2900 178 125-2508 138 383 60 37 380 2900
129 80- 250(l) 00 I 27.8 80 37 380 2900 179 125-315 160 44.4 125 90 380 2900
130 80-250(l)A 93.5 26.0  70 30 380 2900 180 125-3154 150 417 110 75 380 2900
131 80-250(l)B 86.4 24.0  60 30 380 2900 181 125-3158 143 39.7 100 75 380 2900
132 80-315(l) 100 27.8 125 75 380 2950 182 125-3150 134 37.2 99 55 380 2950
133 80- 315(l)A 93.5 26.0  110 55 380 2900 183 150-125 160 44.4 20 15 380 2900
134 80-315(l)B 86.4 24.0  93 45 380 2900 184 150-1254 155 43.3 16 11 380 2900
135 80-315(l)C 82 22.8 85 37 380 2900 185 150-160 160 44.4 32 22 380 2900
136 100-100 100 27.8 12.5 5.5 380 2900 186 150-160A 150 41.7 28 18.5 380 2900
137 100-100A 89 24.7 10 4 380 2860 187 150-1600 140 38.9 24 15 380 2860
138 100-125 100 27.8 20 11 380 2900 188 150-200 150 44.4 50 37 380 2900
139 100-125A 89 24.7 16 7.5 380 2900 189 150-200A 150 41.7 44 30 380 2900
140 100-160 100 27.8 32 15 380 2900 190 150-2008 140 38.9 38 22 380 2900
141 100-160A 93.5 26 28 11 380 2900 191 150-250 200 55.6 80 75 380 2900
142 100-160B 86.4 24 24 11 380 2900 192 150-250A 187 51.9 70 55 380 2900
143 100-200 100 27.8 50 22 380 2900 193 150-250B 172 47.8 60 45 380 2900
144 100-200A 93.5 26 44 18.5 380 2900 194 150-315 200 55.6 125 110 380 2900
145 100-200B 86.4 24 37 15 380 2900 195 150-315A 187 51.9 110 90 380 2900
146 100-250 100 27 80 37 380 2900 196 150-315B 172 47.8 93 75 380 2900
147 100-250A 93.5 26 70 30 380 2900 197 150-350 160 44.4 150 110 380 2900
148 100-250B 86.4 24 60 30 360 2900 198 150-350A 150 41.7 142 90 380 2900
149 100-315 100 27.8 125 75 380 2950 199 150-350B 143 39.7 135 75 380 2950
150 100-315A 93.5 26 110 55 380 2950
Technical parameter(Quadruple)
No. Model Flow Head Power Voltage Rotating speed No. Model Flow Head Power Voltage Rotating speed
(m3/h) (L/s) (m3/h) (L/s)
1 40-160 3.2 0.9 8 0.75 380 1450 44 65-315(I)8 20 5.6 21 3 380 1450
2 40-200 3.2 0.9 12.5 0.75 380 1450 45 65-400(I) 25 69 50 11 380 1470
3 40-250 3.2 0.9 20 1.1 380 1450 46 65-400(I)A 22.8 6.3 43.5 7.5 380 1450
4 40-250A 3 0.8 17.5 0.75 380 1450 47 65-400(I)B 207 5.8 38 7.5 360 1450
5 40-200(I) 6.3 1.8 12.5 0.75 380 1450 48 80-125 25 6.9 5 0.75 380 1450
6 40-250(I)A 6.3 1.8 20 1.5 380 1450 49 80-160 25 69 8 1.5 380 1450
7 40-250(I)A 5.8 1.6 17 11 380 1470 50 80-160A 22 6.1 6 1.1 380 1450
8 40-250(I)B 5.4 15 13 0.75 380 1450 51 80-200 25 6.9 125 2.2 380 1450
9 50-200 6.3 1.8 12.5 0.75 380 1450 52 80-200A 23.3 6.5 11.3 1.5 380 1450
10 50-250 6.3 1.8 20 1.5 380 1450 53 80-250 25 6.9 20 3 360 1450
11 50-250A 5.8 16 17 1.1 380 1450 54 BO-250A 22.2 6.2 15.8 2.2 380 1450
12 50-2508 54 1.5 13 0.75 380 1450 55 80-250B 20 56 128 1.5 380 1450
13 50-160(I) 12.5 3.5 8 0.75 380 1450 56 80-315 25 6.9 32 5.5 380 1450
14 50-200(I) 12.5 35 12.5 1.1 380 1450 57 BD-315A 522 6.3 26 4 360 1450
15 50-200(I)A 11.2 3.1 10 0.75 380 1450 58 BD-315B 20 5.6 21 3 380 1450
16 50-250(I) 125 35 20 2.2 380 1450 59 80-100(I) 50 13.9 3 0.75 380 1450
17 50-250(I)A 11.7 3.3 17.5 1.5 380 1450 60 80-125(I) 50 13.9 5 1.5 380 1450
18 50-250(I)B 10 28 13 1.1 380 1450 61 80-125(I)A 44.6 12.4 4 1.1 360 1450
19 50-315(1) 12.5 3.5 32 4 380 1450 62 80-160(I) 50 13.9 8 2.2 380 1450
20 50-315(I)A 11.7 33 28 3 380 1450 63 80-160(I)A 44.7 12.4 6 1.5 360 1450
21 50-315(1)B 10 28 21 3 380 1450 64 80-160(I)8 432 12 5.8 1.5 380 1450
22 50-400(I) 12.5 35 50 7.5 380 1450 65 80-200(I) 50 13.9 12.5 4 360 1450
23 50-400(1)A 11.4 3.2 44 7.5 380 1450 66 80-200(I)A 447 12.4 10 3 360 1450
24 50-400(I)B 10.4 2.9 39 5.5 380 1450 67 80-250(I) 50 13.9 20 5.5 380 1450
25 65-160 12.5 3.5 8 0.75 380 1450 68 80-250(I)A 46 12.8 17 4 380 1450
26 65-200 12.5 35 12.5 1.1 380 1450 69 80-250(I)8 40.5 11.3 13 3 380 1450
27 65-200A 11.2 3.1 10 0.75 380 1450 70 80-315(I) 50 13.9 32 11 380 1470
28 65-250 12.5 35 20 22 380 1450 71 80-315(I)A 46 12.8 27.9 7.5 380 1450
29 65-250A 11.7 3.3 17.5 1.5 380 1450 72 80-315(I)8 40.5 11.3 21 5.5 380 1450
30 65-250B 10 28 13 1.1 380 1450 73 80-400(I) 50 13.9 50 15 380 1470
31 65-315 12.5 3.5 32 4 380 1450 74 80-400(I)A 45 12.8 43.5 11 380 1470
32 65-315A 11.7 33 28 3 380 1450 75 80-400(I)B 423 11.8 38 11 360 1470
33 65-3158 10 2.8 21 3 380 1450 76 80-500(I) 50 13.9 80 30 380 1470
34 65-125(I) 25 69 5 0.75 380 1450 77 80-500(I)A 46 12.8 71 30 360 1470
35 65-160(I) 25 6.9 8 1.5 380 1450 78 80-500(1)B 42.3 11.8 63.5 22 380 1470
36 65-160(I)A 22 6.1 6 1.1 380 1450 79 100-100 50 13.9 3 0.75 360 1450
37 65-200(I) 25 6.9 12.5 2.2 380 1450 80 100-125 50 13.9 5 1.5 380 1450
38 65-200(I)A 23.3 65 11 1.5 380 1450 81 100-125A 44.6 12.4 3.8 1.1 380 1450
39 65-250(I)B 25 6.9 20 3 380 1450 82 100-160 50 13.9 8 2.2 380 1450
40 65-250(I)A 22.2 6.2 15.8 2.2 380 1450 83 100-160A 45 12.8 6 1.5 360 1450
41 65-250(I)B 20 5.6 12.8 1.5 380 1450 84 100-200 50 13.9 12.5 4 380 1450
42 65-315(I) 25 6.9 32 5.5 380 1450 85 100-200A 44.7 12.4 10 3 380 1450
43 65-315(I)A 22.2 6.2 26 4 380 1450 86 100-250 50 13.9 20 5.5 380 1450
Technical parameter(Quadruple)
No. Model Flow Head Power Voltage Rotating speed No. Model Flow Head Power Voltage Rotating speed
(m3/h) (L/s) (m3/h) (L/s)
87 100-250A 46 12.8 17 4 380 1450 130 125-315(I)A 150 41.7 28 18.5 380 1470
88 100-250B 40.5 11.3 13 3 380 1450 131 125-315(I)B 138 38.3 24 15 380 1470
89 100-315 50 13.9 32 11 380 1470 132 125-400(I) 160 44.4 50 37 380 1470
6 100-315A 46 128 27.9 7.5 380 1450 133 125-400(I)A 150 41.7 44 30 380 1470
91 100-3158 40.5 11.3 21 5.5 380 1450 134 125-400(I)B 138 38.3 38 30 380 1470
92 100-125(I) 80 22.2 5 2.2 380 1450 135 125-500(I) 160 44.4 80 75 380 1470
93 100-160((I) 80 22.2 8 3 380 1450 136 125-500(I)A 149 41.4 70.5 55 380 1450
94 100-160(I)A 72 20 65 22 380 1450 137 125-500(I)B 138.5 38.5 62 45 380 1470
95 100-200(I) 80 22.2 12.5 55 380 1450 138 150-200 160 44.4 12.5 15 380 1470
96 100-200(I)A 2 20 10 4 380 1450 139 150-200A 143 39.7 10 11 380 1470
97 100-250(I) 80 22.2 20 11 380 1470 140 150-200B 130 36.1 8 7.5 380 1470
98 100-250(I)A 72 20 17.5 75 380 1450 141 150-250 160 44.4 20 18.5 380 1470
99 100-250(I))B 69 19.2 15 55 380 1450 142 150-250A 147 40.8 17 15 380 1470
100 100-315(I) 80 22.2 32 15 380 1470 143 150-250B 134 37.2 14 11 380 1470
101 100-315(I)A 75 20.8 27.5 11 380 1470 144 150-315 160 44.4 32 30 380 1470
102 100-315(I)B 70 19.4 24 11 380 1470 145 150-315A 150 41.7 28 22 380 1470
103 100-400((I) 80 22.2 50 30 380 1470 146 150-315B 138 38.3 24 18.5 380 1470
104 100-400(I)A 75 20.8 44 22 380 1470 147 150-400 160 44.4 50 45 380 1470
105 100-400(I)B 70 19.4 38 18.5 380 1470 148 150-400A 150 41.7 44 37 380 1470
106 100-500(I) 100 27.8 80 45 380 1470 149 150-400B 138 38.3 38 30 380 1470
107 100-500(I)A 91 25.3 71 37 380 1470 150 150-200(I) 200 55.6 12.5 15 380 1470
108 100-500(I)B 83 231 63.5 30 380 1470 151 150-200(I)A 179 497 10 11 90 1470
109 125-125 100 27.8 5 2.2 380 1450 152 150-250(I) 200 55.6 20 18.5 380 1470
110 125-125A 87.3 243 38 1.5 380 1450 153 150-250(I)A 187 519 17.5 15 380 1470
111 125-160 100 27.8 8 4 380 1450 154 150-250(I)B 173 48.1 14 11 380 1470
112 125-160A 87 24.2 6 3 380 1450 155 150-315(I) 230 556 32 30 350 1470
113 125-200 100 27.8 12.5 7.5 380 1450 156 150-315((I)A 187 51.9 28 22 380 1470
114 125-200A 89 247 10 5.5 380 1450 157 150-315B 173 48 1 24 18.5 380 1470
115 125-250 100 27.8 20 11 380 1470 158 150-400(I) 2 55.6 50 45 380 1470
116 125-250A 933 25.9 17.5 7.5 380 1450 159 150-400(I)A 187 51.9 44 37 380 1470
117 125-250B 87 24.2 15 7.5 380 1450 160 150-400(I)B 173 48.1 37.5 30 380 1470
118 125-315 100 27.8 32 15 380 1470 161 150-400(I)C 160 44.4 32 22 380 1470
119 125-315A 91 25.3 27 11 360 1470 162 150-500(I) 200 55.6 80 90 380 1470
120 125-315B 87 212 24 11 380 1470 163 150-500(I)A 182 506 70.5 75 380 1470
121 125-400 100 27.8 50 30 380 1470 164 150-500(I)B 166 46.1 62 55 380 1470
122 125-400A 94 261 44 22 380 1470 165 200-200 200 55.6 12.5 15 380 1470
123 125-400B 87 24.2 37.5 18.5 380 1470 166 200-200A 179 49.7 10 11 380 1470
124 125-200(I) 160 44.4 12.5 11 380 1470 167 200-250 200 55.6 20 18.5 380 1470
125 125-200(I)A 143 39.7 10 7.5 380 1450 168 200-250A 187 51.9 17.5 15 380 1470
126 125-250(I) 160 44.4 20 15 380 1470 169 200-250B 173 48.1 14 11 380 1470
127 125-250(I)A 147 40.8 17 11 380 1470 170 200-315 2 55.6 32 30 380 1470
128 125-250(I)B 134 37.2 14 7.5 380 1450 171 200-315A 187 51.9 28 22 380 1470
129 125-315(I) 160 44.4 32 22 380 1470 172 200-315B 173 48.1 24 18.5 380 1470
Technical parameter(Quadruple)
No. Model Flow Head Power Voltage Rotating speed No. Model Flow Head Power Voltage Rotating speed
(m3/h) (L/s) (m3/h) (L/s)
173 200-400 200 55.6 50 45 380 1470 219 300-380 720 200 44 132 380 1470
174 200-400A 187 51.9 44 37 380 1470 220 300-380A 666 185 38 110 380 1470
175 200-400B 173 48.1 37.5 30 380 1470 221 300-380B 614 171 33 90 380 1470
176 200-400C 160 44.4 32 22 380 1470 222 300-400 720 200 50 132 380 1470
177 200-500 200 55.6 80 90 380 1470 223 300-400A 666 185 44 110 380 1470
178 200-500A 182 50.6 204 75 380 1470 224 300-400B 609 169 38 90 380 1470
179 200-500B 166 45.1 62 55 380 1450 225 300-400C 561 156 33 75 380 1450
180 200-200(I) 430 111 125 22 380 1470 226 300-460 720 200 65 185 350 1470
181 200-200(I)A 358 99 10 18.5 380 1470 227 300-460A 666 185 55 160 380 1470
182 200-250(I) 400 111 20 30 380 1470 228 300-460B 614 171 45 110 380 1470
183 200-250(I)A 358 99 16 22 380 1470 229 300-460C 561 156 38 90 380 1470
184 200-250(I)B 322 89 13 18.5 380 1470 230 300-500 720 200 80 250 380 1470
185 200-315(I) 400 111 32 55 380 1470 231 300-500A 675 188 70 200 380 1470
186 200-315(I)A 374 104 28 45 380 1470 232 300-500B 625 174 60 160 380 1470
187 200-315(I)B 346 96 24 37 380 1470 233 300-500C 570 158 50 110 380 1470
188 200-400(I) 400 111 50 90 380 1470 234 300-235(I) 1080 300 40 160 380 1470
189 200-400(I)A 374 104 44 75 380 1470 235 300-235(I)A 965 268 32 132 380 1470
190 200-400(I)B 347 96 38 55 OBE 1470 236 350-235 800 222 12.5 37 380 1470
191 200-400(I)C 320 89 32 45 380 1470 237 350-300 800 222 20 75 380 1470
192 200-510(I) 400 111 82 132 380 1470 238 350-315 800 222 32 90 380 1470
193 200-510(I)A 374 104 70 110 380 1470 239 350-315A 748 208 28 75 380 1470
194 200-510(I)B 346 96 60 90 380 1470 240 350-315B 692 192 24 75 380 1470
195 200-510(I)C 320 89 50 75 380 1470 241 350-400 800 222 50 160 380 1470
196 250-200 550 153 12.5 30 380 1470 242 350-400A 750 208 44 132 380 1470
197 250-200A 506 141 10.8 22 380 1470 243 350-400B 697 194 38 110 380 1470
198 250-235 500 133 12.5 22 380 1470 244 350-460 1200 333 50 250 380 1470
199 250-250 550 153 20 45 380 1470 245 350-460A 1080 300 44 200 380 1470
200 250-250A 490 135 16 37 380 1470 246 350-450B 985 274 385 160 380 1470
201 250-300 500 139 20 37 380 1470 247 350-4600 900 250 34 132 380 1470
202 250-315 550 153 32 75 380 1470 248 350-480 850 236 65 220 380 1470
203 250-315A 515 143 28 55 380 1470 249 350-480A 800 222 60 200 380 1470
204 250-315B 476 132 24 45 380 1470 250 350-480B 720 200 55 160 380 1470
205 250-400 550 153 50 110 380 1470 251 350-250(I) 1200 333 20 90 380 1470
206 250-400A 515 143 44 90 380 1470 252 350-250(I)A 1292 303 17 75 380 1470
207 250-400B 476 132 37.5 75 380 1470 253 350-315(I) 1200 333 32 160 380 1470
208 250-480 550 153 70 160 380 1470 254 350-315(I)A 1092 303 2E 132 380 1470
209 250-480A 500 139 60 132 380 1470 255 350-315(I)B 994 276 25 110 380 1470
210 250-480B 450 125 50 90 380 1470 256 350-400(I) 1200 333 50 250 380 1470
211 250-500 55 153 80 200 380 1470 257 350-400(I)A 1092 303 44 250 380 1470
212 250-500A 909 141 71 160 380 1470 258 350-400(I)B 766 922 385 200 380 1470
213 250-500B 466 129 63.5 132 380 1470 259 400-250 1080 300 20 90 380 1470
214 300-250 720 200 20 55 380 1470 260 400-315 1083 300 32 132 380 1470
215 300-250A 607 169 17.6 45 380 1470 261 500-250 1200 333 20 110 380 1470
216 300-315 720 200 32 90 380 1470 262 500-300 1200 333 20 110 380 1470
217 300-315A 666 185 28 75 380 1470 263 500-315 1200 333 32 160 380 1470
218 300-315B 607 169 23.5 55 380 1470
COMPANY PROFILE

As a professional China ISW Series Single Pole Horizontal Pipeline Centrifugal Pump manufacturers and China ISW Series Single Pole Horizontal Pipeline Centrifugal Pump factory, Angdong Pump Industry Co., Ltd. is a modern enterprise specializing in the research and development, casting, processing, production and sales of sewage pump series. The enterprise introduces advanced fluid technology and enterprise management mode, and strives to build an excellent brand of sewage pumps in the country.

The company mainly produces: WQ/QW non-clogging sewage pump series for engineering, JYWQ automatic stirring sewage pump series, GNWQ cutting sewage pump series, WQK special sewage pump series for septic tank, WQ all stainless steel sewage pump, IRG, ISW series pipeline Centrifugal pump, ZW non-clogging self-priming sewage pump, ZX self-priming clean water pump, sewage lifting pump station, integrated prefabricated pump station, water supply equipment series, etc. Products are widely used in urban building water supply and drainage, municipal engineering, flood control and drainage and other fields.

Recommended Products:

Certificates:

Your contact details

If you are interested in our Products or have any questions, please consult us.

Contact us

Industry Knowledge

INDUSTRY KNOWLEDGE EXTENSION

ISW series single pole horizontal pipeline centrifugal pump is mainly used to transport clear water and liquids whose physical and chemical properties are similar to water. Specific application areas include:
Urban water supply and drainage system: used for water supply of urban tap water system, water plant, building water supply and drainage, etc.
Industrial use: used in circulating water systems, cooling water circulation systems, water supply systems, fire protection systems, etc. in industrial production.
Air-conditioning system: central air-conditioning system for buildings, underground garage ventilation system, etc.
Agricultural irrigation: used for farmland irrigation, aquaculture, etc.
In a word, ISW series single pole horizontal pipeline centrifugal pump is a general-purpose pump widely used in various occasions, which has the advantages of large flow, high lift, high efficiency and stable operation.
ISW series single pole horizontal pipeline centrifugal pump instruction
When using ISW series single pole horizontal pipeline centrifugal pump, the following instructions should be followed:
Check the pump before installation to make sure there is no damage, looseness, deformation, etc.
When installing, choose a suitable installation location according to the weight and size of the pump to avoid excessive bending and stretching between the pump and the pipeline.
The inlet and outlet of the pump should be properly connected to the pipeline, and the connection should be tight and leak-free.
Before use, a test run should be carried out to ensure that the pump is running normally without abnormal noise and leakage.
Before starting the pump, the water inlet pipe should be opened to fill the pump inlet with liquid.
During the operation of the pump, the running status of the pump should be checked regularly to ensure that the pump runs smoothly without abnormal vibration and noise.
If the pump is not used for a long time, the liquid in the pump should be drained to avoid rusting in the pump due to long-term storage.
During the maintenance period of the pump, the pump should be maintained according to the requirements of the manual, and the lubricating oil and seals should be replaced regularly.
In conclusion, correct use and maintenance are very important to the performance and life of ISW series single pole horizontal pipeline centrifugal pump. During use, follow the instructions for use and pay attention to safety. If you have any questions, you should consult a professional in time.
Correct maintenance and maintenance of ISW series single pole horizontal pipeline centrifugal pump can prolong its service life, reduce the number of repairs and replacements, and improve work efficiency. The following are maintenance and maintenance recommendations for ISW series single pole horizontal pipeline centrifugal pump:
Regularly replace lubricating oil: According to the usage and manufacturer's suggestion, regularly replace the lubricating oil in the pump body. Pay attention to cleaning when replacing to ensure that the new oil is clean and free of impurities.
Clean the pump body regularly: Clean the pump body regularly to remove impurities such as sediment and scale in the pump body, so as to prevent impurities from entering the pump and affecting its normal operation.
Regularly check the seals: check the seals of the pump body regularly. If the seals are aging or damaged, they should be replaced in time to ensure that the pump body will not leak.
Regularly check the motor: regularly check the insulation condition of the motor, the running status of bearings and other parts, and deal with it in time if any abnormality is found.
Regularly check the coupling: Regularly check the coupling of the pump body to ensure that it is tightly connected and does not appear to be loose.
Avoid excessive load: Pay attention to avoid excessive load during use to prevent overheating of the pump body and affect its life.
Regularly check the pipeline connection: Regularly check the connection of the inlet and outlet pipelines of the pump body to ensure that the connection is tight and there is no leakage.
In short, regular maintenance and maintenance can fully guarantee the performance and life of ISW series single pole horizontal pipeline centrifugal pump, reduce failure and downtime, and ensure production efficiency.
