OEM/ODM WQP All Stainless Steel Sewage Pump

Home / Product / Sewage Pump / WQP All Stainless Steel Sewage Pump

Product



News

WQP All Stainless Steel Sewage Pump Manufacturers

Product description :

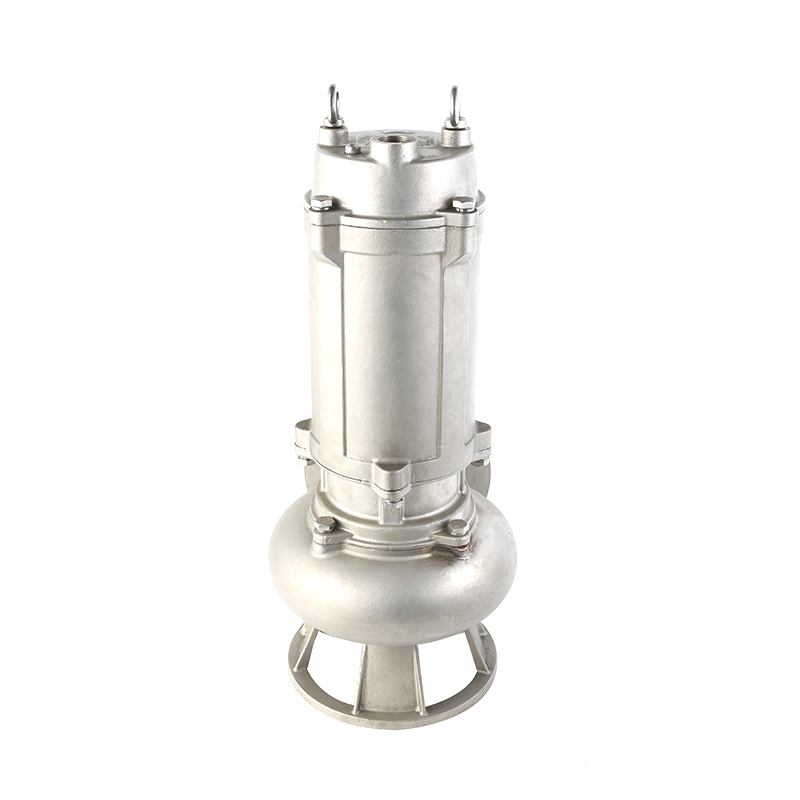

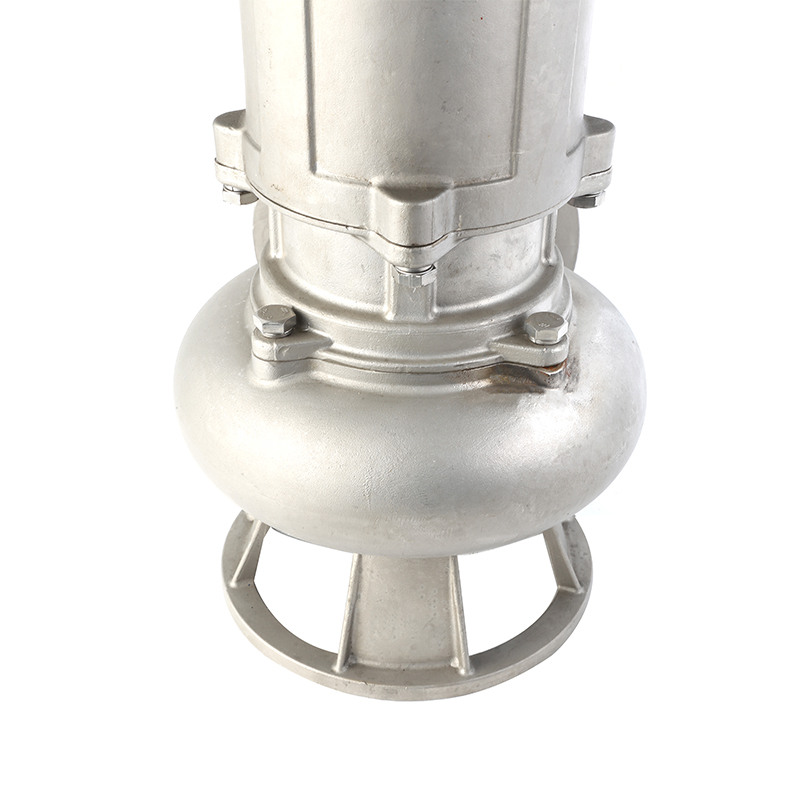

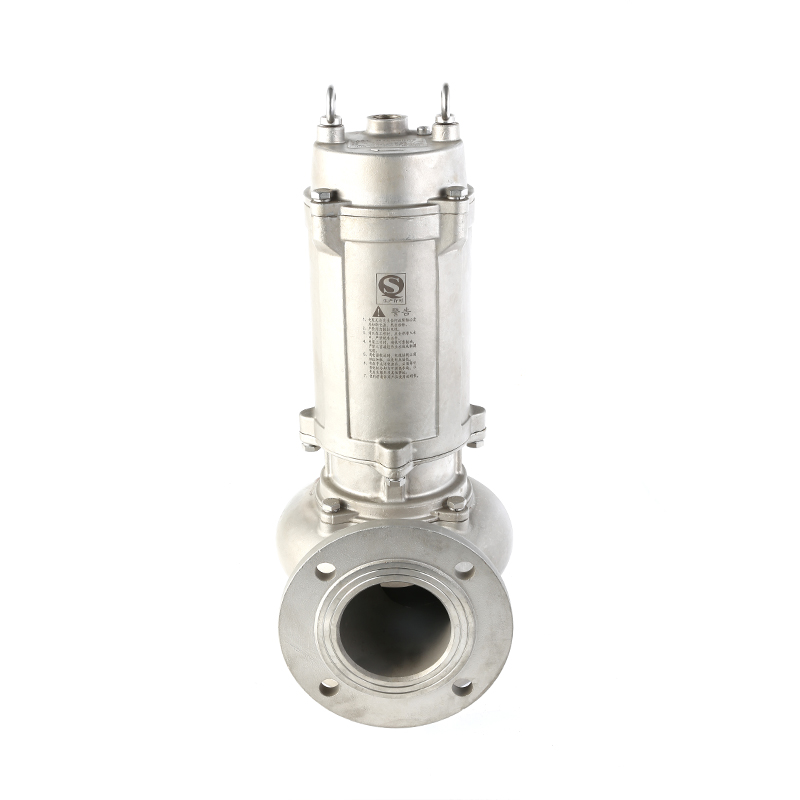

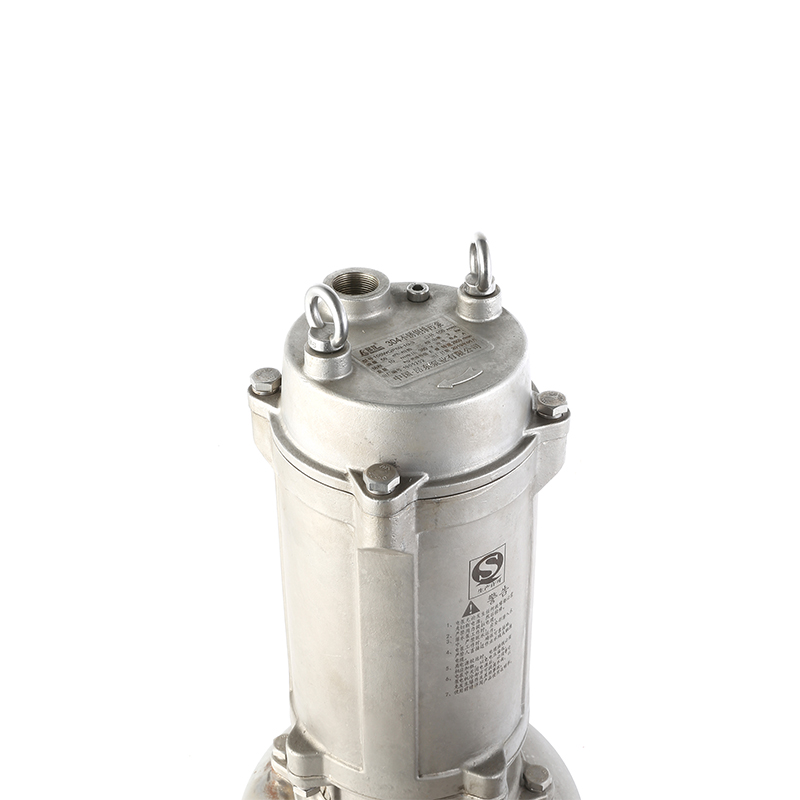

WQP stainless steel submersible sewage pump is a whole stainless steel water pump. AIll parts that can contact with water are stainless steel. The material is three kinds of stainless steel 304 31631 6L. The material is authentic and can pass the test. We adopt NSK bearings , silicon carbide to alloy mechanical sea which also corrosion resistance.
Conditions of Use:
1. The medium temperature does not exceed 50° C (common motor) and 120° C (high temperaturemotor), the density is 1.0-1 .3kg/m3, and the PH is between 0~14.
2. The exposed liquid level of the motor part does not exceed .
3. The pump must be used within the lift range to ensure that the motor is not overloaded.
Advantage: Can be customized to: high temperature resistant type or cutting function.
Table of performance parameters
No. Model Rated flow(m3/h) Rated head(m) Power(kW) Outlet(mm) Voltage(V) Speed(r/min)
1 50WQP10-10-0.75 10 10 0.75 50 220 2900
2 65WQP15-6-0.75 15 6 0.75 65 220 2900
3 50WQP7-15-1.1 7 15 1.1 50 220 2900
4 65WQP20-6-1.1 20 6 1.1 65 220 2900
5 50WQP15-15-1.5 15 15 1.5 50 220 2900
6 65WQP25-7-1.5 25 7 1.5 65 220 2900
7 50WQP15-20-2.2 15 20 2.2 50 220 2900
8 65WQP20-15-2.2 20 15 2.2 65 220 2900
9 80WQP45-10-2.2 45 10 2.2 80 220 2900
10 100WQP50-7-2.2 50 7 2.2 100 220 2900
11 50WQP15-30-3 15 30 3 50 220 2900
Table of performance parameters
No. Model Rated flow(m3/h) Rated head(m) Power(kw) Outlet(mm) Speed(r/min)
12 65WQP37-13-3 37 13 3 65 2900
13 80WQP45-12-3 45 12 3 80 2900
14 100WQP50-10-3 50 10 3 100 2900
15 50WQP15-32-4 15 32 4 50 2900
16 65WQP20-25-4 20 25 4 65 2900
17 80WQP40-15-4 40 15 4 80 2900
18 100WQP50-10-4 50 10 4 100 1450
19 50WQP15-40-5.5 15 40 5.5 50 2900
20 65WQP25-32-5.5 25 32 5.5 65 2900
21 80WQP30-30-5.5 30 30 5.5 80 2900
22 100WQP65-18-5.5 65 18 5.5 100 2900
23 150WQP100-7-5.5 100 7 5.5 150 2900
24 50WQP20-50-7.5 20 50 7.5 50 2900
25 65WQP40-30-7.5 40 30 7.5 65 2900
26 80WQP65-25-7.5 65 25 7.5 80 2900
27 100WQP80-20-7.5 80 20 7.5 100 2900
28 150WQP100-15-7.5 100 15 7.5 150 2900
29 65WQP35-45-11 35 45 11 65 2900
30 65WQP35-55-15 35 55 15 65 2900
31 100WQP100-20-11 100 20 11 100 1450
32 100WQP100-25-15 100 25 15 100 1450
33 100WQP100-30-18.5 100 30 18.5 100 1450
34 100WQP100-35-22 100 35 22 100 1450
35 150WQP180-12-15 180 12 15 150 1450
36 150WQP180-16-18.5 180 16 18.5 150 1450
37 150WQP180-20-22 180 20 22 150 1450
38 150WQP180-28-30 180 28 30 150 1450
39 150WQP200-30-37 200 30 37 150 1450
40 200WQP300-7-11 0 7 11 200 1450
41 200WQP250-11-15 250 11 15 200 1450
42 200WQP250-15-18.5 250 15 18.5 200 1450
43 200WQP400-10-22 400 10 22 200 1450
44 200WQP400-13-30 400 13 30 200 1450
45 200WQP300-15-22 300 15 22 200 1450
46 200WQP250-22-30 250 22 30 200 1450
47 200WQP350-25-37 350 25 37 200 1450
48 100WQP100-45-37 100 45 37 100 1450
49 150WQP150-40-45 150 40 45 150 1450
50 250WQP460-25-55 460 25 55 250 1450
51 200WQP250-50-75 250 50 75 200 1450
COMPANY PROFILE

As a professional China WQP All Stainless Steel Sewage Pump manufacturers and China WQP All Stainless Steel Sewage Pump factory, Angdong Pump Industry Co., Ltd. is a modern enterprise specializing in the research and development, casting, processing, production and sales of sewage pump series. The enterprise introduces advanced fluid technology and enterprise management mode, and strives to build an excellent brand of sewage pumps in the country.

The company mainly produces: WQ/QW non-clogging sewage pump series for engineering, JYWQ automatic stirring sewage pump series, GNWQ cutting sewage pump series, WQK special sewage pump series for septic tank, WQ all stainless steel sewage pump, IRG, ISW series pipeline Centrifugal pump, ZW non-clogging self-priming sewage pump, ZX self-priming clean water pump, sewage lifting pump station, integrated prefabricated pump station, water supply equipment series, etc. Products are widely used in urban building water supply and drainage, municipal engineering, flood control and drainage and other fields.

Recommended Products:

Certificates:

Your contact details

If you are interested in our Products or have any questions, please consult us.

Contact us

Industry Knowledge

INDUSTRY KNOWLEDGE EXTENSION

What are the specifications of WQP all stainless steel sewage pump?
The specification of WQP all stainless steel sewage pump can vary according to different manufacturers and models. Generally speaking, the specification of WQP all stainless steel sewage pump may include the following aspects:
Flow range: The flow range of WQP all stainless steel sewage pump is usually between a few cubic meters per hour and several hundred cubic meters per hour, depending on different models and manufacturers.
Head range: The head range of WQP all stainless steel sewage pumps is usually between a few meters to tens of meters, depending on different models and manufacturers.
Power: The power of WQP all stainless steel sewage pump is usually between several hundred watts and several thousand watts, depending on different models and manufacturers.
Inlet and outlet diameter: The inlet and outlet diameter of WQP all stainless steel sewage pump is usually between a few millimeters and several hundred millimeters, depending on different models and manufacturers.
Material: WQP all stainless steel sewage pump is made of all stainless steel to ensure that it is not easily corroded in the sewage environment.
It should be noted that different manufacturers may produce different specifications of WQP all stainless steel sewage pumps, please choose the specific specifications according to the actual needs and the information provided by the supplier.
WQP all stainless steel sewage pump use
WQP all stainless steel sewage pump is a water pump used to discharge sewage containing solid particles and fibers. It can be widely used in sewage treatment systems of industrial and civil buildings, such as sewage treatment plants, chemical plants, paper mills, food processing plants, hospitals, hotels, guesthouses and other places.
The main function of WQP all stainless steel sewage pump is to extract the sewage containing solid particles and fibers from the sewage collection tank or sewage treatment system, and then transport it to the sewage treatment equipment for treatment. These sewage include toilets, washing pools, tableware washing pools, car washes and so on.
WQP all stainless steel sewage pump is characterized by all stainless steel material, strong corrosion resistance and long service life; it has compact structure, beautiful appearance, convenient operation, low noise, energy saving and environmental protection.
WQP all stainless steel sewage pump application range
WQP all stainless steel sewage pump has a wide range of applications and can be used in the following occasions:
Industrial sewage treatment: such as sewage treatment in industrial fields such as sewage treatment plants, chemical plants, paper mills, and food processing plants;
Civil building sewage treatment: such as sewage treatment in hotels, hotels, hospitals, schools, office buildings, shopping malls, supermarkets, etc.;
Urban sewage treatment: such as sewage treatment of urban sewage treatment plants, drainage pipeline systems, municipal public facilities, etc.;
Agricultural irrigation: such as drainage and sewage of farmland, orchard, flowers, etc.
In general, WQP all-stainless steel sewage pump is suitable for occasions that need to discharge sewage containing solid particles and fibers. Its material is all stainless steel, which can adapt to different environments, has good corrosion resistance and stable performance, and can ensure the sewage. Efficient, fast and stable processing.
