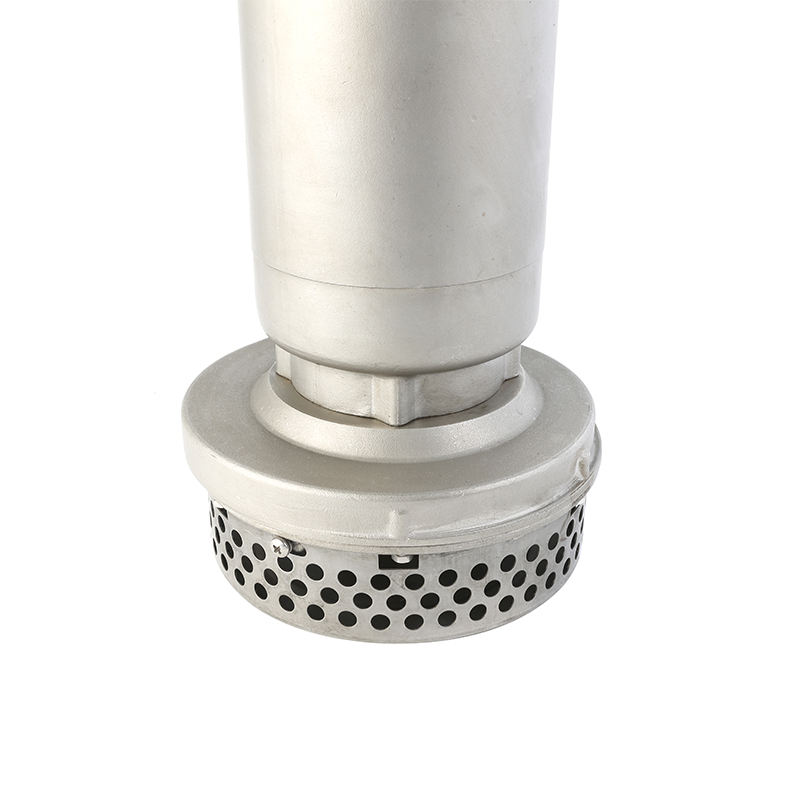

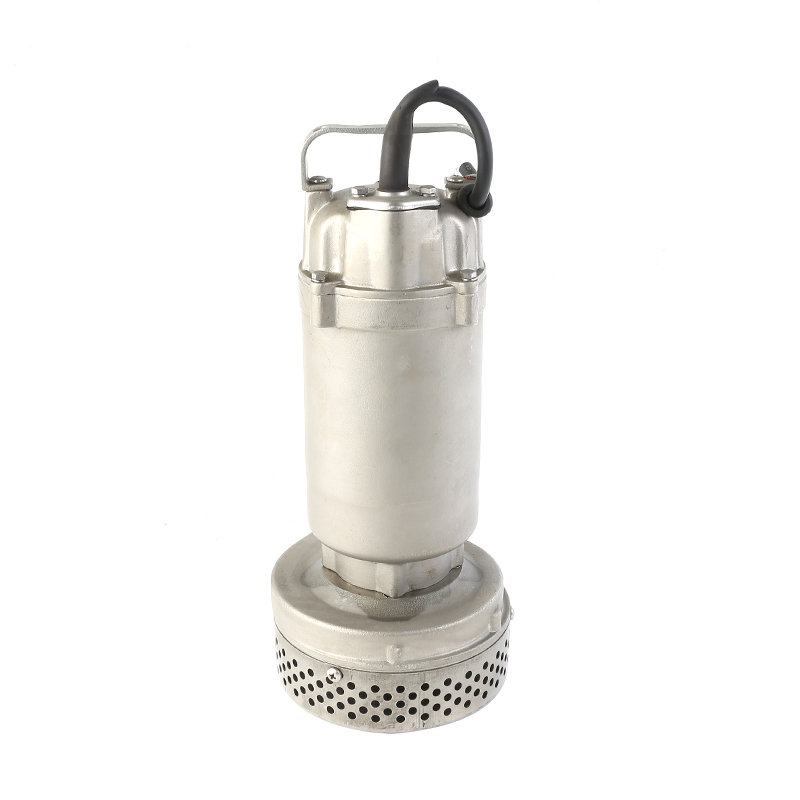

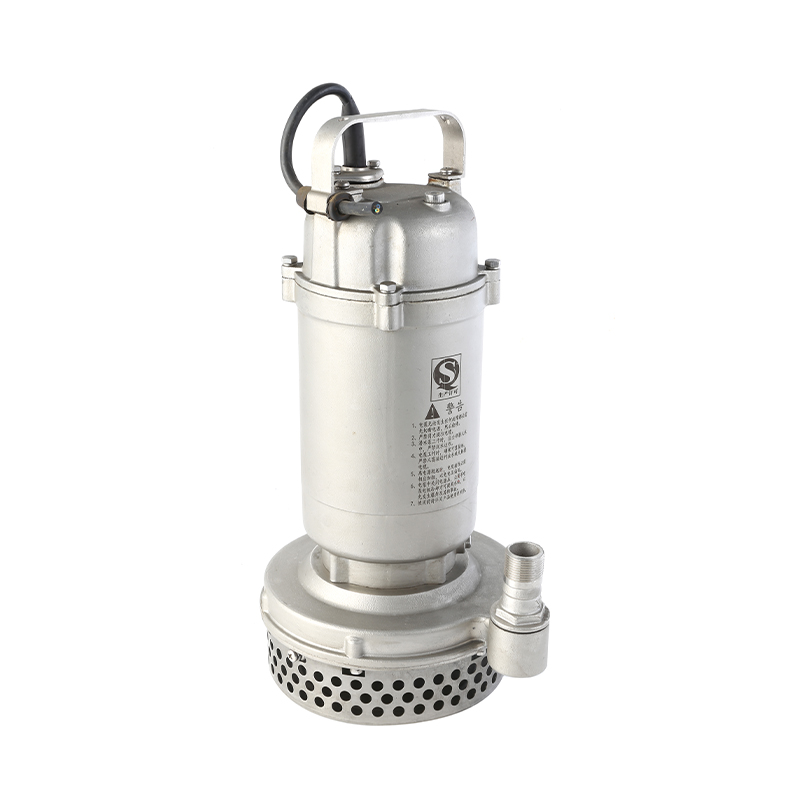

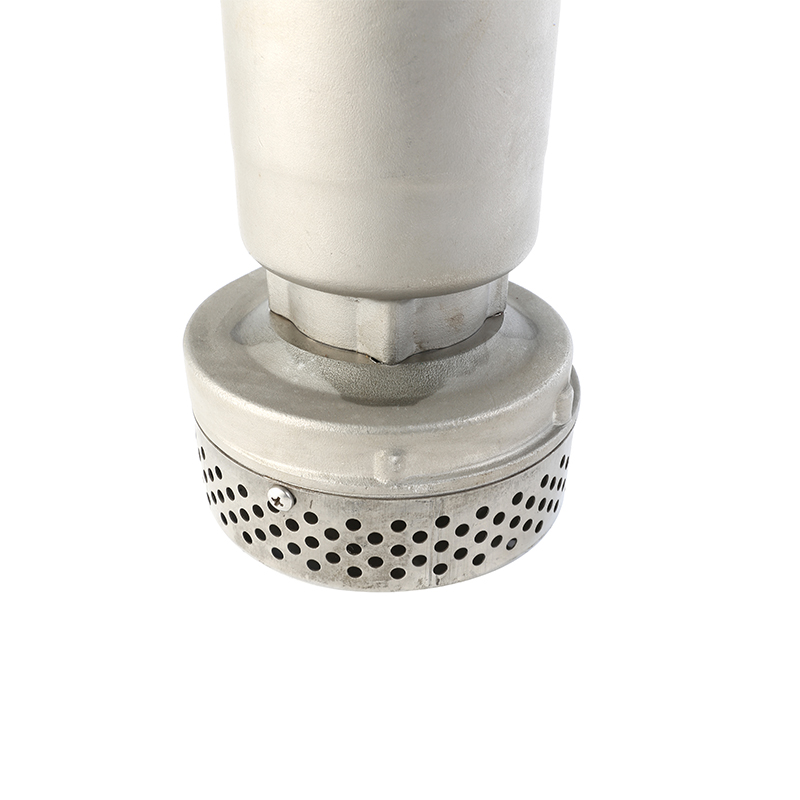

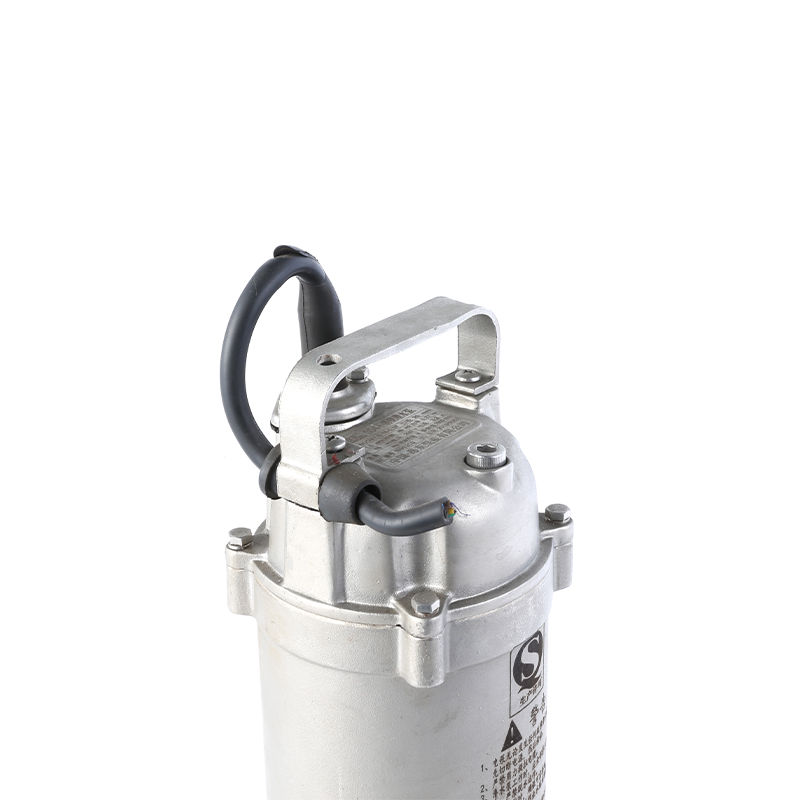

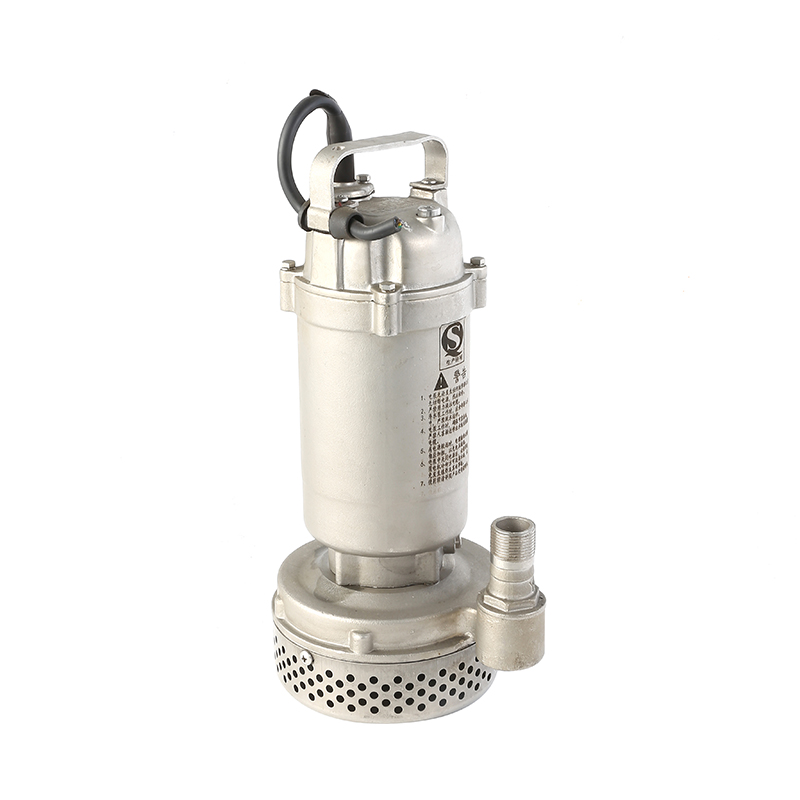

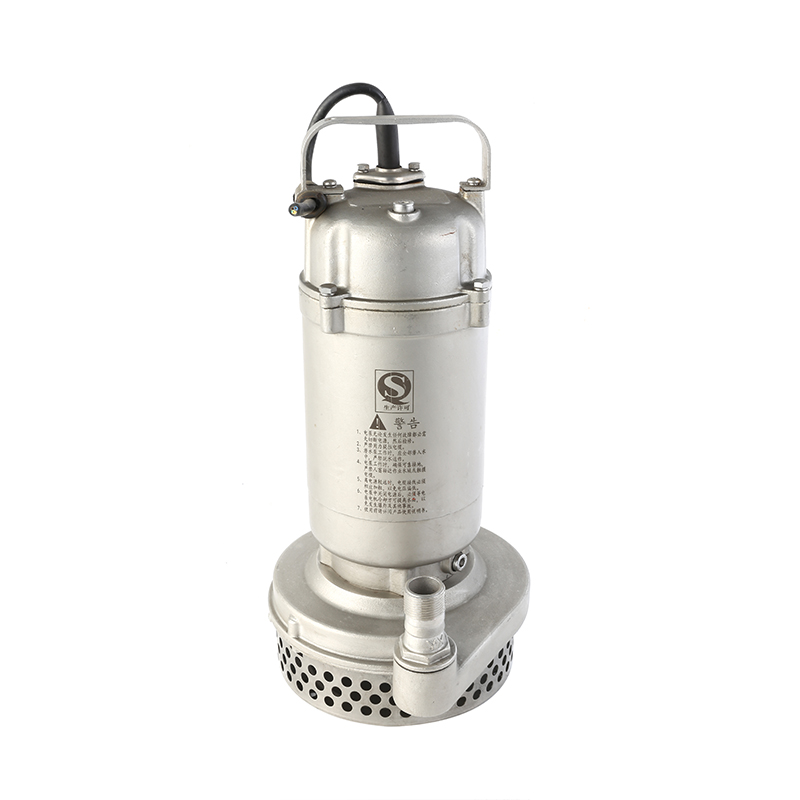

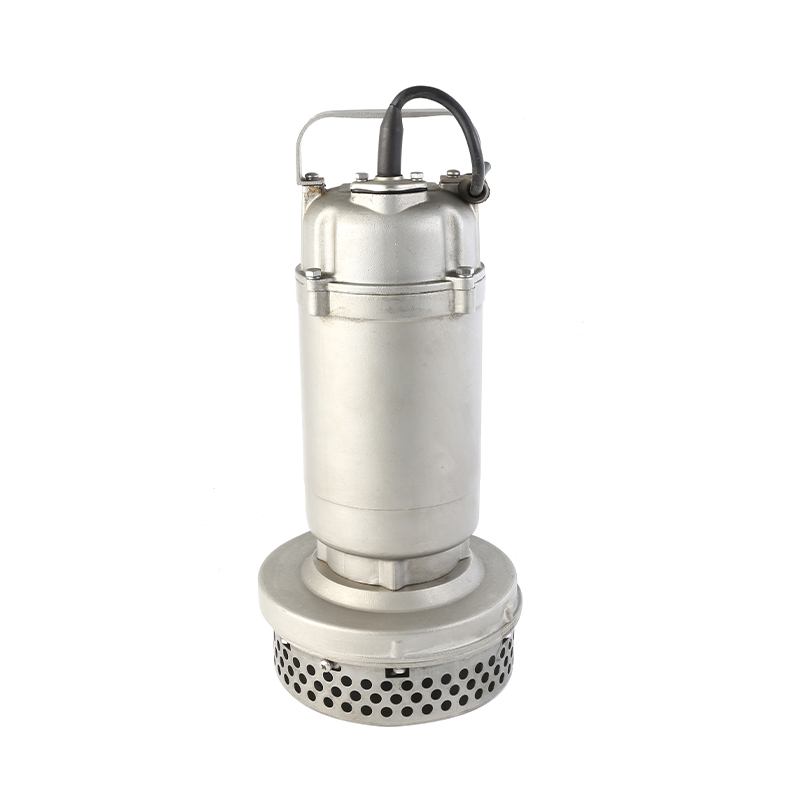

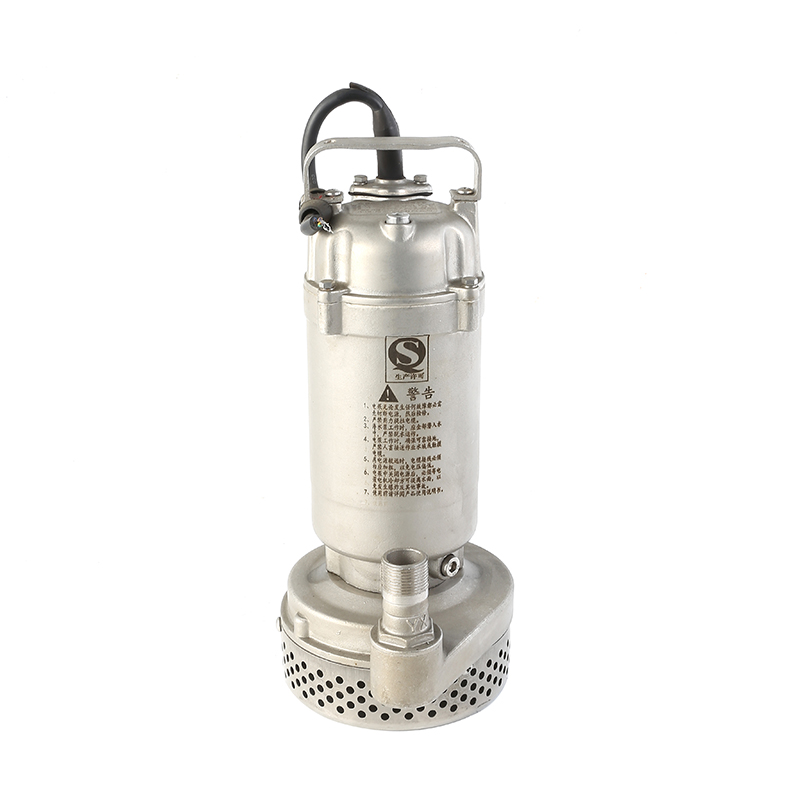

QDX All Stainless Steel Submersible Pump Manufacturers

Conditions of Use :

1. The pump should be fully immersed in water, and the diving depth should be no less than 0.5 meters and no more than 40 meters. The ambient water temperature should not be higher than 40C.

2. The working medium is non-corrosive clean water, the sand content is not more than 0.1%, and the PH valueis 6.5~8.5.

3. The power supply should be three-phase 50 Hz, the rated voltage is 380 volts, and its power supply voltage must be guaranteed in the range of 342 ~ 420 volts.
Table of performance parameters

No.	Model	Flow (m3/h)	Lift (w)	Power (kW)	outlet (mm)
1	QSP15-10-0.75	15	10	0.75	2
2	QSP10-10-0.55	10	10	0.55	2
3	QSP10-14-0.75	10	14	0.75	2
4	QSP15-7-0.55	15	7	0.55	2
5	QSP15-14-1.1	15	14	1.1	2
6	QSP40-6-1.1	40	6	1.1	3
7	QSP25-9-1.1	25	9	1.1	2.5
8	QSP25-12-1.5	25	12	1.5	2.5
9	QSP40-8-1.5	40	8	1.5	3
10	QSP15-26-2.2	15	26	2.2	2
11	QSP20-20-2.2	20	20	2.2	2
12	QSP25-17-2.2	25	17	2.2	2.5
13	QSP40-13-2.2	4	13	2.2	3
14	QSP65-7-2.2	65	7	2.2	4
15	QSP40-16-3	40	16	3	3
16	QSP40-18-3	40	18	3	3
17	QSP45-16-3	45	16	3	3
18	QSP25-25-3	25	25	3	2.5
19	QSP32-20-3	32	20	3	2.5
20	QSP50-13-3	50	13	3	3

Table of performance parameters

No.	Model	Flow(m3/h)	Lift (w)	Power (kW)	outlet (mm)
21	QSP65-103	65	10	3	4
22	QSP100-6-3	100	6	3	4
23	QSP40-21-4	40	21	4	3
24	QSP40-24-4	40	24	4	3
25	QSP65-13-4	65	13	4	4
26	QSP80-12-4	80	12	4	4
27	QSP100-9-4	100	9	4	4
28	QSP40-28-5.5	40	28	5.5	3
29	QSP45-25-5.5	45	25	5.5	3
30	OSP60-20-5.5	60	20	5.5	4
31	QSP65-18-5.5	65	18	5.5	4
32	QSP100-12-5.5	100	12	5.5	4
33	QSP120-10-5.5	120	10	5.5	6
34	QSP200-8-5.5	200	B	5.5	6
35	QSP220-5-5.5	220	5	5.5	6
36	QSP65-25-7.5	65	25	7.5	4
37	QSP80-20-7.5	08	20	7.5	4
38	QSP100-17-7.5	100	17	7.5	4
39	QSP150-10-7.5	150	10	7.5	6
40	OSP250-8-7.5	250	B	7.5	6
41	QSP120-18-7.5	120	18	7.5	6
42	QSP300-6-7.5	300	6	7.5	6
43	QSP100-15-7.5	100	15	7.5	5
44	OSP20-30/2-3	20	30	3	3
45	QSP25-34/2-4	25	34	4	2.5
46	QSP25-36/2-4	25	36	4	2.5
47	QSP25-38/2-4	25	38	4	2.5
48	QSP20-40/2-4	20	40	4	2.5
49	QSP30-26/2-4	30	26	4	2.5
50	QSP30-30/2-4	30	30	4	2.5
51	OSP15-52/3-4	15	52	4	2
52	QSP40-30/2-5.5	40	30	5.5	3
53	QSP30-45/3-5.5	30	45	5.5	3
54	QSP20-50/3-5.5	20	50	5.5	2.5
55	OSP20-54/3-5.5	20	54	5.5	2.5
56	QSP30-36/2-5.5	30	36	5.5	3
57	QSP25-44/2-5.5	25	44	5.5	2.5
58	QSP15-65/4-5.5	15	65	5.5	2
59	QSP40-40/2-7.5	40	40	7.5	3
09	QSP50-36/3-7.5	50	36	7.5	3
61	QSP80-22/2-7.5	80	22	7.5	4
62	QSP120-18/2-7.5	120	18	7.5	6
63	QSP25-60/3-7.5	25	60	7.5	2.5

COMPANY PROFILE

As a professional China QDX All Stainless Steel Submersible Pump manufacturers and China QDX All Stainless Steel Submersible Pump factory, Angdong Pump Industry Co., Ltd. is a modern enterprise specializing in the research and development, casting, processing, production and sales of sewage pump series. The enterprise introduces advanced fluid technology and enterprise management mode, and strives to build an excellent brand of sewage pumps in the country.

The company mainly produces: WQ/QW non-clogging sewage pump series for engineering, JYWQ automatic stirring sewage pump series, GNWQ cutting sewage pump series, WQK special sewage pump series for septic tank, WQ all stainless steel sewage pump, IRG, ISW series pipeline Centrifugal pump, ZW non-clogging self-priming sewage pump, ZX self-priming clean water pump, sewage lifting pump station, integrated prefabricated pump station, water supply equipment series, etc. Products are widely used in urban building water supply and drainage, municipal engineering, flood control and drainage and other fields.

Certificates:

Your contact details

If you are interested in our Products or have any questions, please consult us.

Industry Knowledge

INDUSTRY KNOWLEDGE EXTENSION

Is the QDX all stainless steel submersible pump suitable for garden irrigation?

Yes, QDX all stainless steel submersible pump is suitable for garden irrigation. The all-stainless steel material makes the QDX submersible pump have good corrosion resistance and durability, and is suitable for use in water sources containing chemical substances. At the same time, the QDX submersible pump is small in size and compact in structure, easy to install in wells or pools, and suitable for small garden irrigation systems. The QDX submersible pump has a moderate flow rate and head, which can meet the needs of garden irrigation, and can also be used for other purposes, such as domestic water supply, agricultural irrigation, industrial water, etc.

How to choose the suitable pump for QDX all stainless steel submersible pump?

The following factors need to be considered when selecting a suitable pump for QDX all-stainless steel submersible pump:

Flow demand: Determine the flow of the pump according to the amount of water that needs to be pumped to ensure that it can meet the actual demand.

Head requirement: Determine the head of the pump according to the height or distance that the water needs to be pumped to ensure that it can be pumped to the designated position.

Environmental requirements: Select the appropriate pump material and sealing form according to the pumping environment (such as water quality and water temperature of the water source, etc.).

Power requirements: Select the appropriate motor power and phase number according to the power supply voltage and frequency.

Use occasions: Select the appropriate pump type according to the actual use occasions, for example, you need to choose a pump with a higher waterproof level for outdoor use.

When choosing a pump, you also need to consider some other factors, such as brand, after-sales service, etc. It is recommended to choose regular manufacturers or distributors, and choose products with reliable quality and considerate service. At the same time, select the appropriate model and specification according to actual needs to ensure that it can meet the needs of use.

Can the QDX all stainless steel submersible pump be used for river pumping?

QDX all-stainless steel submersible pump is not suitable as a river pump, because of its small head and flow, it is suitable for use in small wells or pools. The water source of the river course usually has a large flow and a deep water depth, and pumps with high power, large flow, and high lift are required for pumping. If the QDX all stainless steel submersible pump is used for river pumping, it may not be able to meet the actual demand, and will cause overload and damage to the pump. It is recommended to choose a pump with large flow and high lift suitable for river pumping for pumping.
