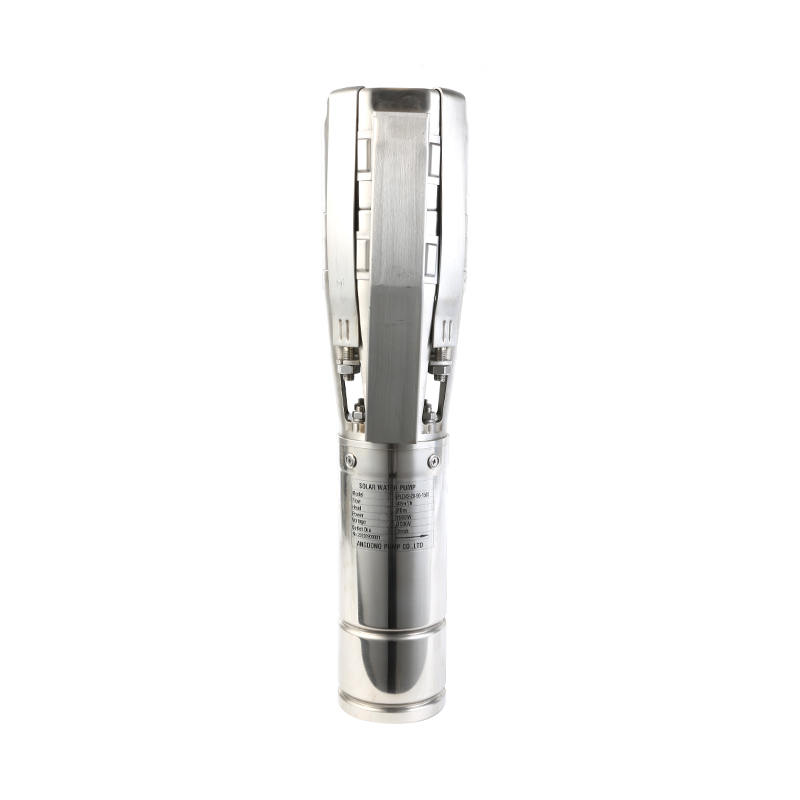

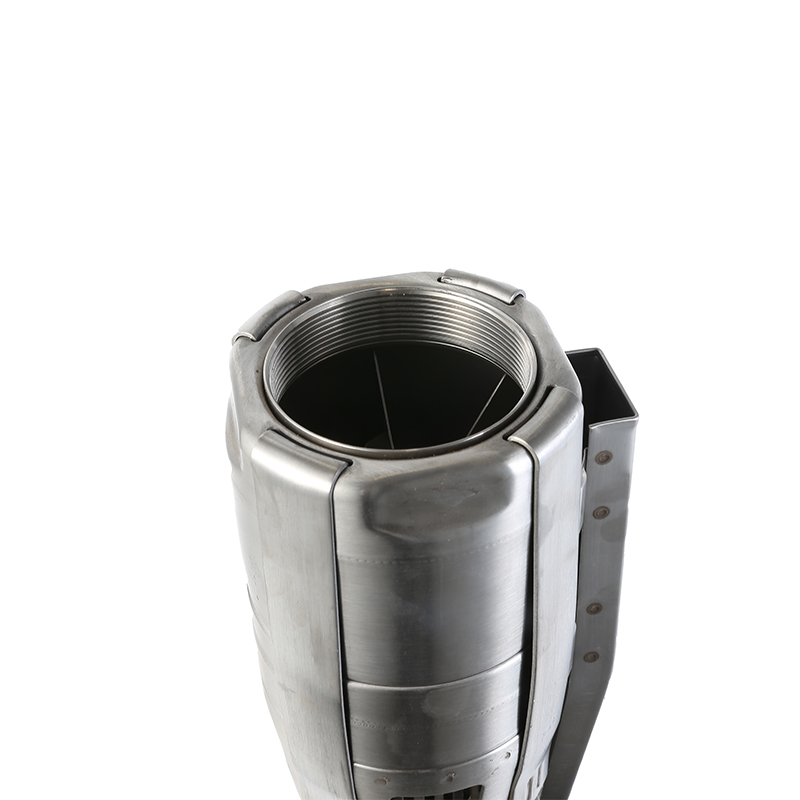

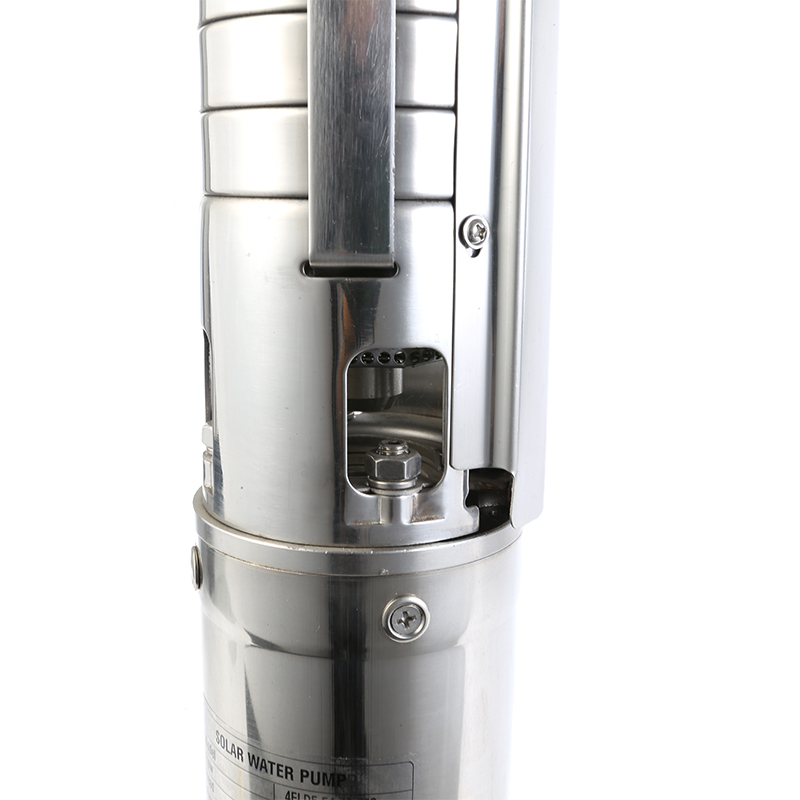

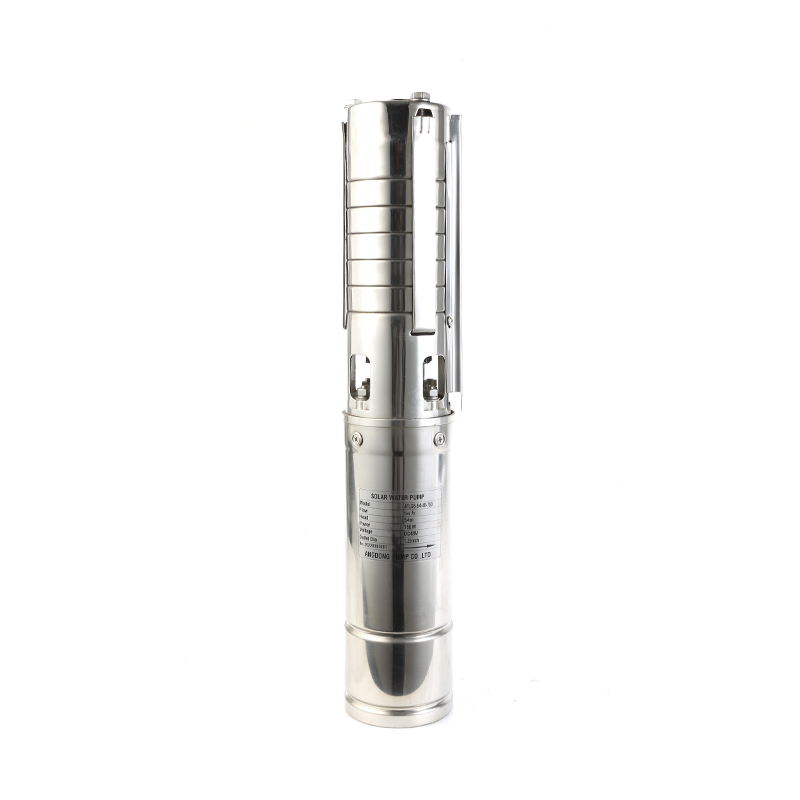

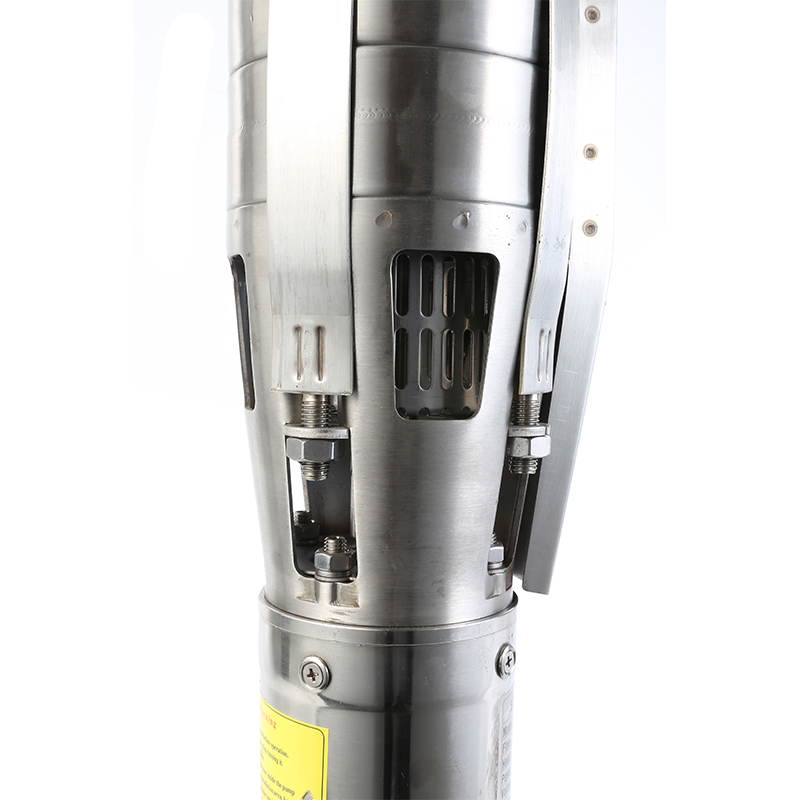

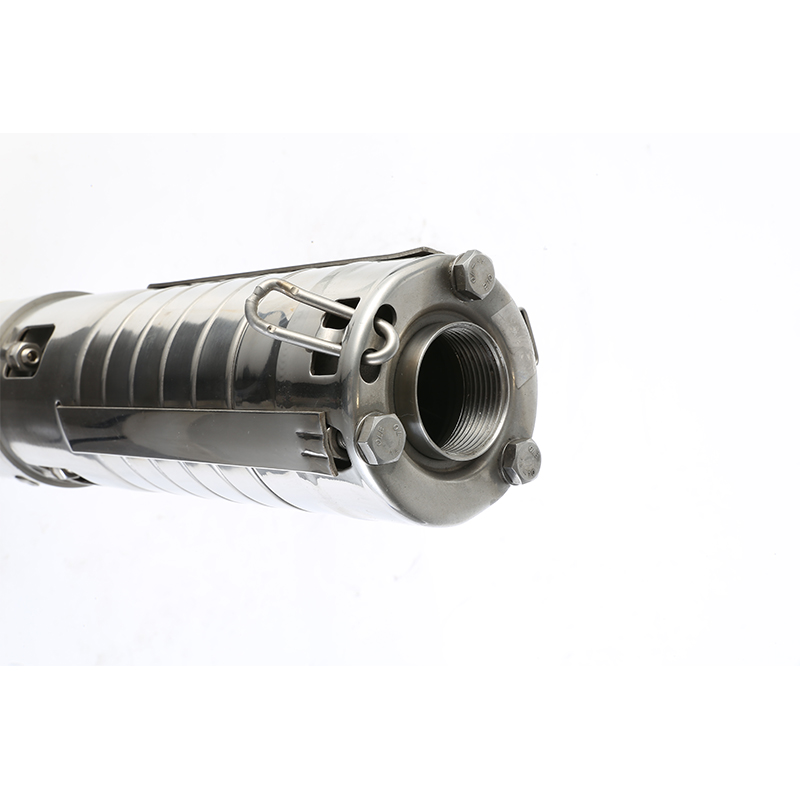

4/6 Inch Solar Energy Stainless Steel Impeller Pump Manufacturers

Free spare parts

Material of Parts

Pump head:	ss304
Pump body:	ss304
lmpeller:	ss304
Bearing:	NSK brand
Cable:	3m
Motor:	permanent magnetic synchronous

Advantage of solar water pump

High efficiency because of PMSM

MPPT function

Intelligent water shortage protection

Longer life than normal AC water pump

Over-load protechion, under-load protection,

lock-rotor protection, thermal proteciton.

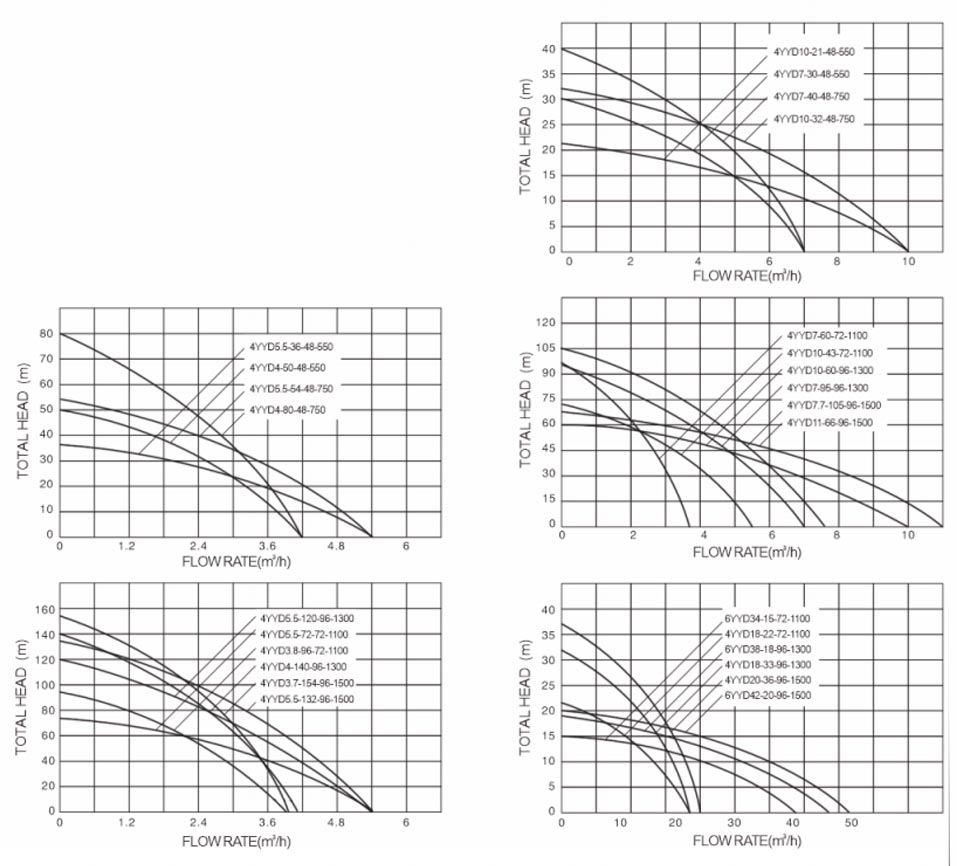

Curve

Technical data

No	Model	Max FIow (m2/h)	Max Head (m)	Pump		Pump Dia ( inch )	Outlet Dia ( inch )	Solar Panels
No	Model	Max FIow (m2/h)	Max Head (m)	Voltage (V)	Power (W)	Pump Dia ( inch )	Outlet Dia ( inch )	VOC range (V)	Power(W)
1	4YYD4-50-48-550	4	50	DC48	550	4	1.25	50-100V	800
2	4YYD5 5-36-48-550	5.5	36	DC48	550	4	1.25	50-100V	800
3	4YYD7-30-48-550	7	30	DC48	550	4	1.25	50-100V	800
4	4YYD10-21-48- 550	10	21	DC48	550	4	1.5	50-100V	800
5	4YYD4. -80-48-750	4	80	DC48	750	4	1.25	50-100V	1000
6	4YYD5.5-54 48-750	5.5	54	DC48	750	4	1.25	50-100V	1000
7	4YYD7-40-48-750	7	40	DC48	750	4	1.25	50-100V	1000
8	4YYD10-32-48-750	10	32	DC48	750	4	1.5	50-100V	1000
9	4YYD3 .8-96-72-1100	3.8	96	DC72	1100	4	1.25	75-150V	1000
10	4YYD5. 5-72-72-1100	5.5	72	DC72	1100	4	1.25	75-150V	1000
11	4YYD7-60-72-1100	7	60	DC72	1100	4	1.25	75-150V	1500
12	4YYD10-43-72-1100	10	43	DC72	1100	4	1.5	75-150V	1500
13	4YYD18-22-72-1100	18	22	DC72	1100	4	2	75-150V	1500
14	6YYD34-15-72-1100	34	15	DC72	1300	6	3	75-150V	1500
15	4YYD4- 140-96-1300	4	140	DC96	1300	4	1.25	100-200V	1500
16	4YYD5 5 120-96 1300	5.5	120	DC96	1300	4	1.25	100-200V	1500
17	4YYD7-95-96-1300	7	95	DC96	1300	4	1.25	100-200V	1720
18	4YYD10-60-96-1300	10	60	DC96	1300	4	1.5	100-200V	1720
19	4YYD18-33- 96-1300	18	33	DC96	1300	4	2	100-200V	1720
20	6YYD38- 1896-1300	38	18	DC96	1500	6	3	100-200V	1720
21	4YYD3.7-154-96- 1500	3.7	154	DC96	1500	4	1.25	100-200V	1720
22	4YYD5.5- 132-96 1500	5.5	132	DC96	1500	4	1.25	100-200V	1720
23	4YYD7.7-105- 961500	7.7	105	DC96	1500	4	1.25	100-200V	2250
24	4YYD11-66-96- 1500	11	66	DC96	1500	4	1.5	100-200V	2250
25	4YYD20-36- 96- 1500	20	36	DC96	1500	4	2	100-200V	2250
26	6YYD42-20-96-1500	42	20	DC96	1500	6	3	100-200V	2250

COMPANY PROFILE

As a professional China 4/6 Inch Solar Energy Stainless Steel Impeller Pump manufacturers and China 4/6 Inch Solar Energy Stainless Steel Impeller Pump factory, Angdong Pump Industry Co., Ltd. is a modern enterprise specializing in the research and development, casting, processing, production and sales of sewage pump series. The enterprise introduces advanced fluid technology and enterprise management mode, and strives to build an excellent brand of sewage pumps in the country.

The company mainly produces: WQ/QW non-clogging sewage pump series for engineering, JYWQ automatic stirring sewage pump series, GNWQ cutting sewage pump series, WQK special sewage pump series for septic tank, WQ all stainless steel sewage pump, IRG, ISW series pipeline Centrifugal pump, ZW non-clogging self-priming sewage pump, ZX self-priming clean water pump, sewage lifting pump station, integrated prefabricated pump station, water supply equipment series, etc. Products are widely used in urban building water supply and drainage, municipal engineering, flood control and drainage and other fields.
