3/4 Inch Solar Energy Plastic Impeller Pump Manufacturers

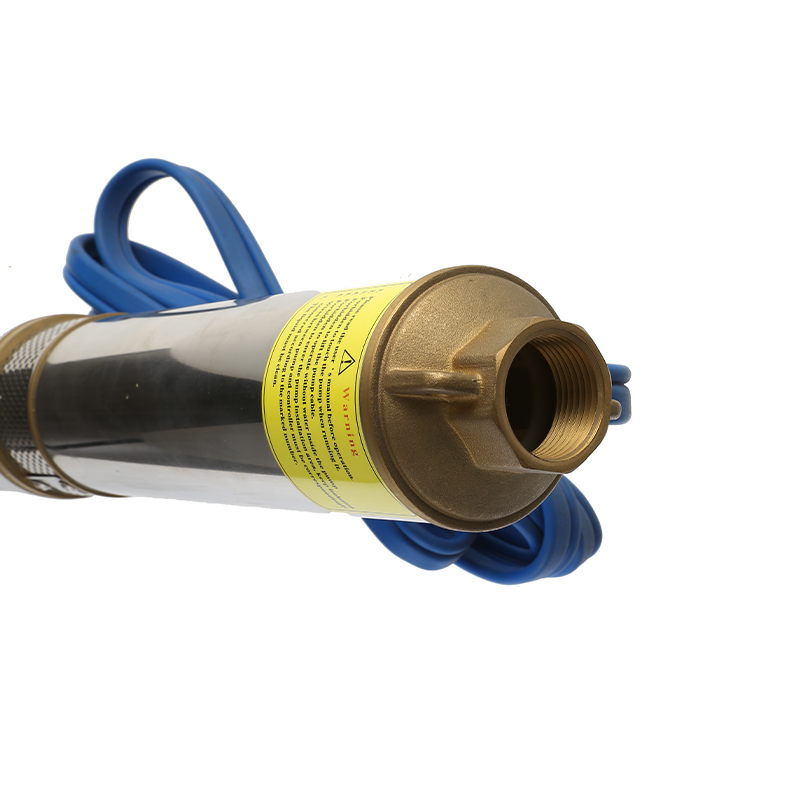

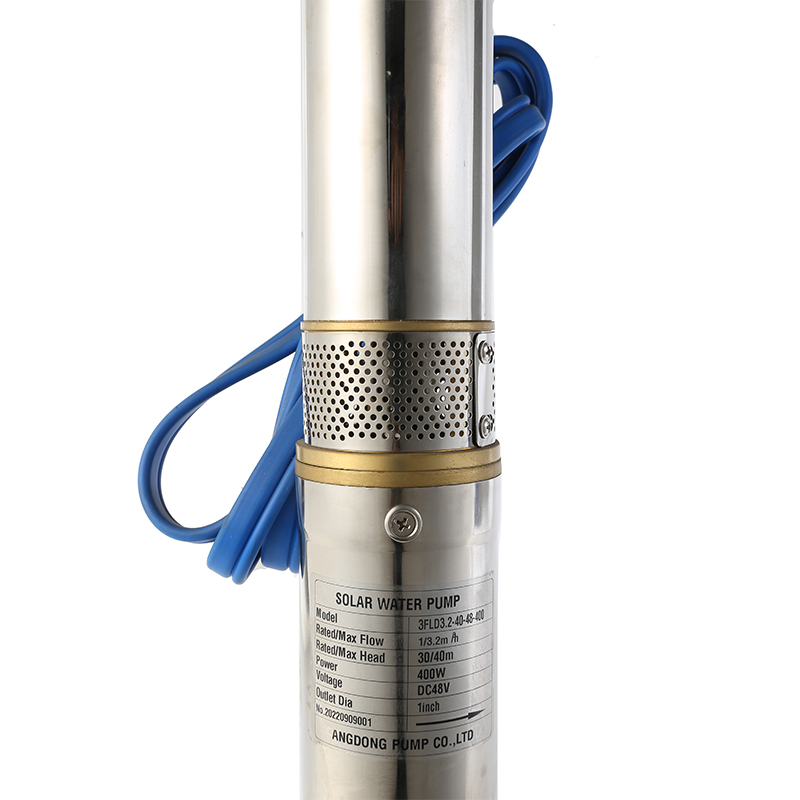

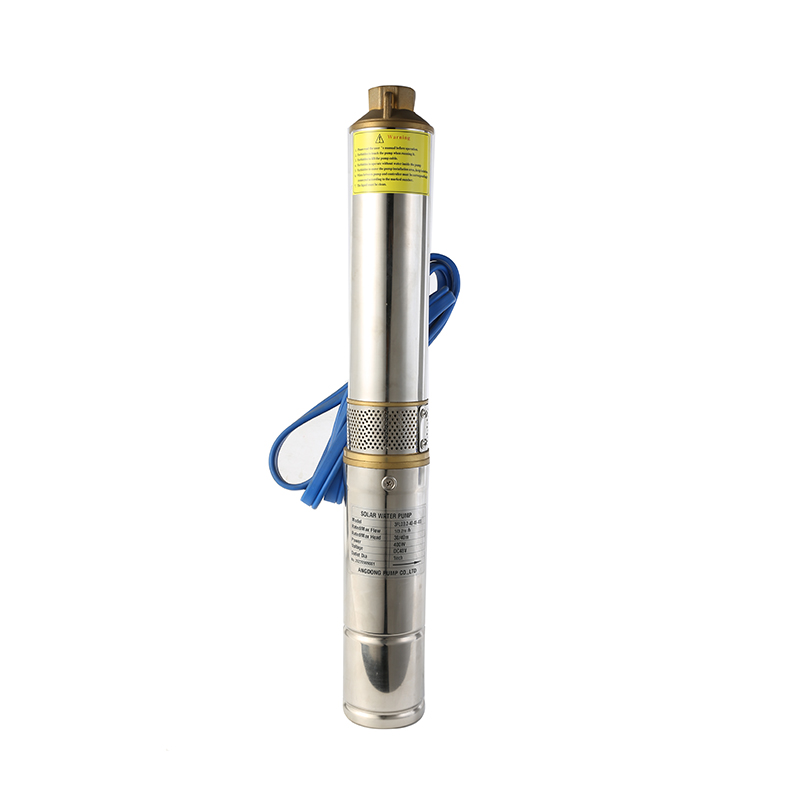

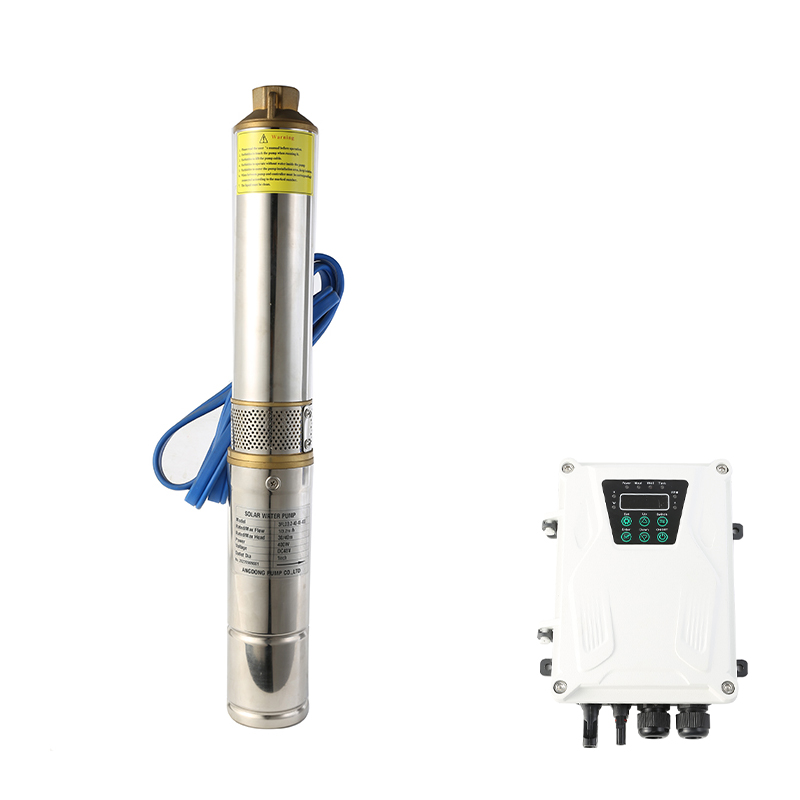

3/4 Inch Solar Energy Plastic Impeller Pump

Free spare parts

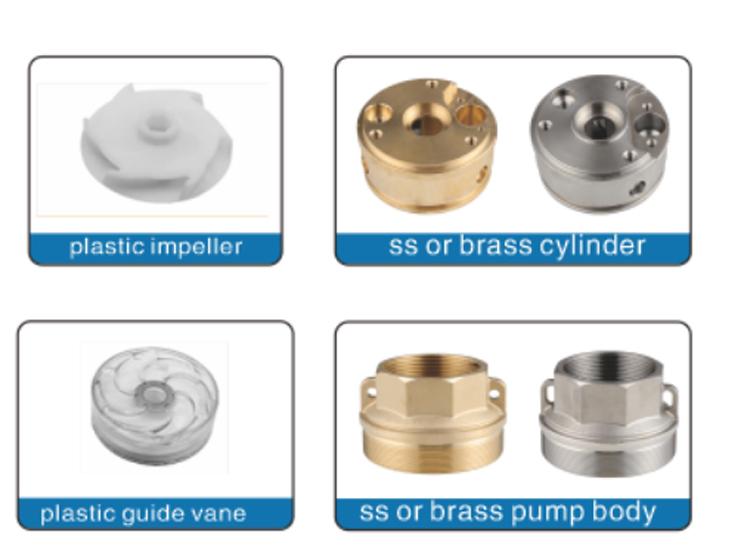

Pump head:	ss304/Copper
Pump body:	ss201
lmpeller:	Plastic
Bearing:	NSK brand
Cable:	3m
Motor:	permanent magnetic synchronous

Advantage of So lar water pump

High efficiency because of PMSM

MPPT function

Intelligent water shortage protection

Longer life than normal AC water pump

Over-load protechion, under-load protection,

lock-rotor protection,thermall proteciton.

No.	Model	Max Flow (m/h)	Max Head (m)	voltage (v)	Power (w)	Solar Panels		Pump Dia ( inch)	Outlet Dia ( inch )
No.	Model	Max Flow (m/h)	Max Head (m)	voltage (v)	Power (w)	vocrange (v)	Power (w)	Pump Dia ( inch)	Outlet Dia ( inch )
1	3YYP3-25-24-200	3	25	24	200	25-50	z300	3	1
2	3YYP3-35-24-300	3	35	24	300	25-50	z500	3	1
3	3YYp3.5-40-48-400	3.5	40	48	400	50-100	z600	3	1
4	3YYP3.8-60-48-500	3.8	60	48	500	50-100	z700	3	1
5	3YYP3.8-80-48-600	3.8	80	48	600	50-100	≥800	3	1
6	3YYP3.8-80-72-600	3.8	80	72	600	75-150	≥800	3	1
7	3YYP3.8-95-48-750	3.8	95	48	750	50-100	1000	3	1
8	3YYP3.8-95-72-750	3.8	95	72	750	75-150	≥1000	3	1
9	3YYP3.8-120-72-1100	3.8	120	72	1100	75-150	z1500	3	1
10	3YYP3.8-120-110-1100	3.8	120	110	1100	100-200	z1500	3	1
11	3YYP4.0-155-96-1300	4	155	96	1300	100-200	≥1700	3	1
12	3YYP6-35-48-550	6	35	48	550	50-100	z700	3	1
13	3YYP6-50-72-750	6	50	72	750	75-150	≥1000	3	1.5
14	3YYP6-75-96-1100	6	75	96	1100	100-200	≥1500	3	1.5
15	3YYP6-85-96-1300	6	85	96	1300	100-200	≥1700	3	1.5
No.	Model	Max Flow (m/h)	Max Head (m)	voltage (v)	Power (w)	Solar Panels		Pump Dia ( inch)	Outlet Dia ( inch )
No.	Model	Max Flow (m/h)	Max Head (m)	voltage (v)	Power (w)	vocrange (v)	Power (w)	Pump Dia ( inch)	Outlet Dia ( inch )
2	4YYP 4.5-50-72-600	4.5	50	72	600	75-150	≥800	4	1.5
3	4YYP 4.5-70-96-750	4.5	70	96	750	100-200	≥1000	4	1.5
4	4YYP 4.5-80-110-900	4.5	80	110	900	100-200	≥1200	4	1.5
5	4YYP 4.5-95-72-1100	4.5	95	72	1100	75-150	≥1500	4	1.5
6	4YYP 4.5-130-96-1500	4.5	130	96	1500	100-200	≥2000	4	1.5
7	4YYP 6-42-48-600	6	42	48	600	50-100	≥800	4	1.5
8	4YYP 6-42-72-600	6	42	72	600	75-150	≥800	4	1.5
9	4YYP 6-56-48-750	6	56	48	750	50-100	≥1000	4	1.5
10	4YYP 6-56-72-750	6	56	72	750	75-150	≥1000	4	1.5
11	4YYP 6-84-72-1100	6	84	72	1100	75-150	≥1500	4	1.5
12	4YYP 6-84-110-1100	6	84	110	1100	100-200	≥1500	4	1.5
13	4YYP 6-112-110-1300	6	112	110	1300	100-200	≥1700	4	1.5
14	4YYP 6-135-110-1500	6	135	110	1500	100-200	≥2000	4	1.5
15	4YYP 9-45-110-750	9	45	110	750	100-200	≥1000	4	2
16	4YYP 9-58-110-1300	9	58	110	1300	100-200	≥1700	4	2
17	4YYP 9-71-110-1500	9	71	110	1500	100-200	≥2000	4	2
18	4YYP 11.5-30-72-750	11.5	30	72	750	75-150	≥1000	4	2
19	4YYP 11.5-49-110-1100	11.5	49	110	1100	100-200	≥1500	4	2
20	4YYP 11.5-55-110-1300	11.5	55	110	1300	100-200	≥1700	4	2
21	4YYP 13-30-96-750	13	30	96	750	100-200	≥1000	4	2
22	4YYP 13-40-110-900	13	40	110	900	100-200	≥1200	4	2
23	4YYP 13-60-110-1500	13	60	110	1500	100-200	≥2000	4	2
24	4YYP 16-45-110-750	16	45	110	750	100-200	≥1000	4	2
25	4YYP 16-55-72-1100	16	55	72	1100	75-150	≥1500	4	2
26	4YYP 16-65-110-1500	16	65	110	1500	100-200	≥2000	4	2
27	4YYP 20-40-110-1500	20	40	110	1500	100-200	≥2000	4	2

COMPANY PROFILE

As a professional China 3/4 Inch Solar Energy Plastic Impeller Pump manufacturers and China 3/4 Inch Solar Energy Plastic Impeller Pump factory, Angdong Pump Industry Co., Ltd. is a modern enterprise specializing in the research and development, casting, processing, production and sales of sewage pump series. The enterprise introduces advanced fluid technology and enterprise management mode, and strives to build an excellent brand of sewage pumps in the country.

The company mainly produces: WQ/QW non-clogging sewage pump series for engineering, JYWQ automatic stirring sewage pump series, GNWQ cutting sewage pump series, WQK special sewage pump series for septic tank, WQ all stainless steel sewage pump, IRG, ISW series pipeline Centrifugal pump, ZW non-clogging self-priming sewage pump, ZX self-priming clean water pump, sewage lifting pump station, integrated prefabricated pump station, water supply equipment series, etc. Products are widely used in urban building water supply and drainage, municipal engineering, flood control and drainage and other fields.
