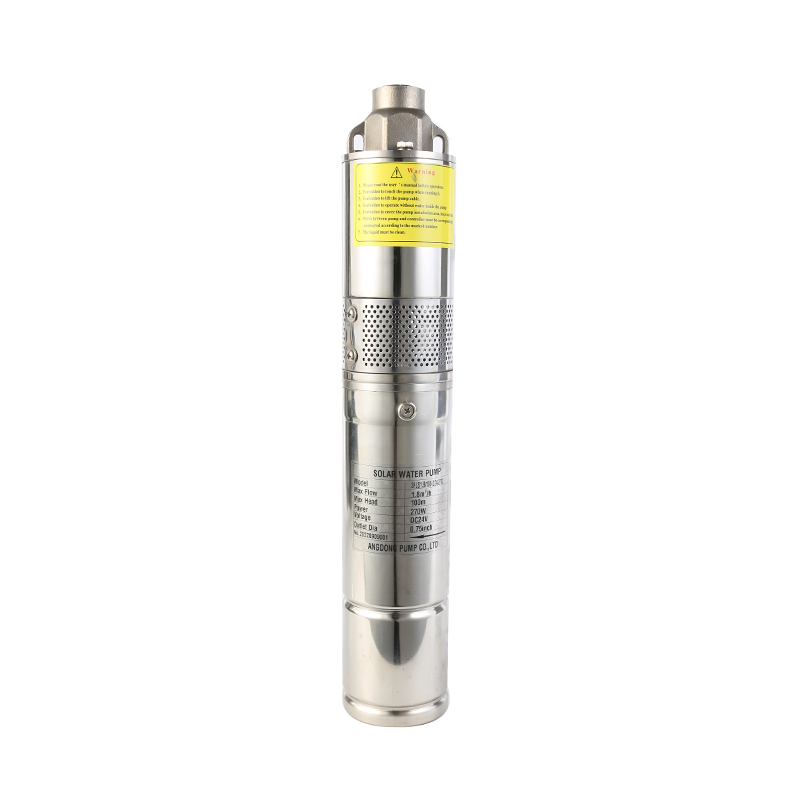

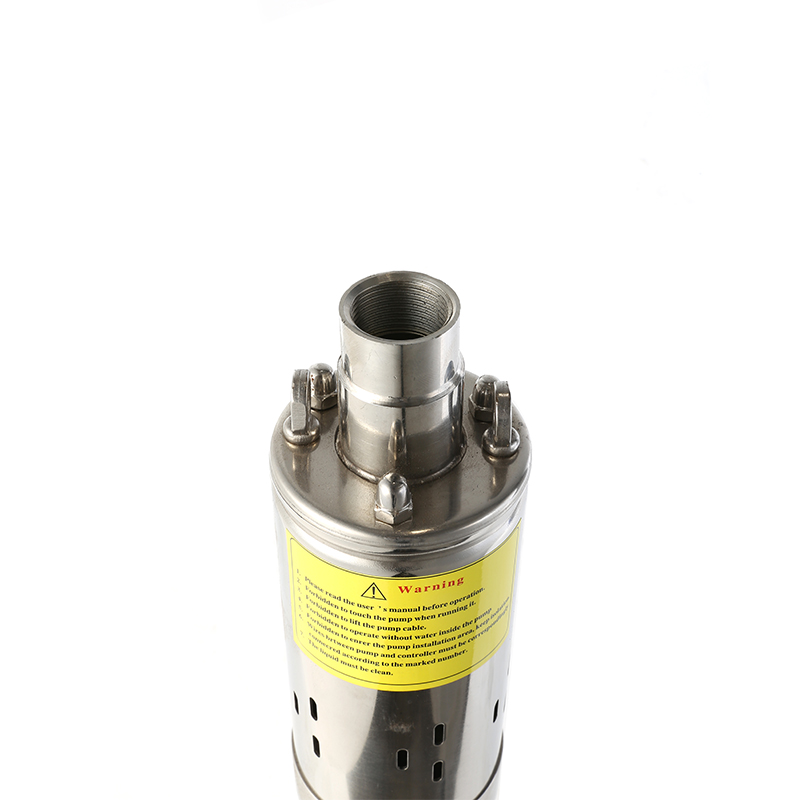

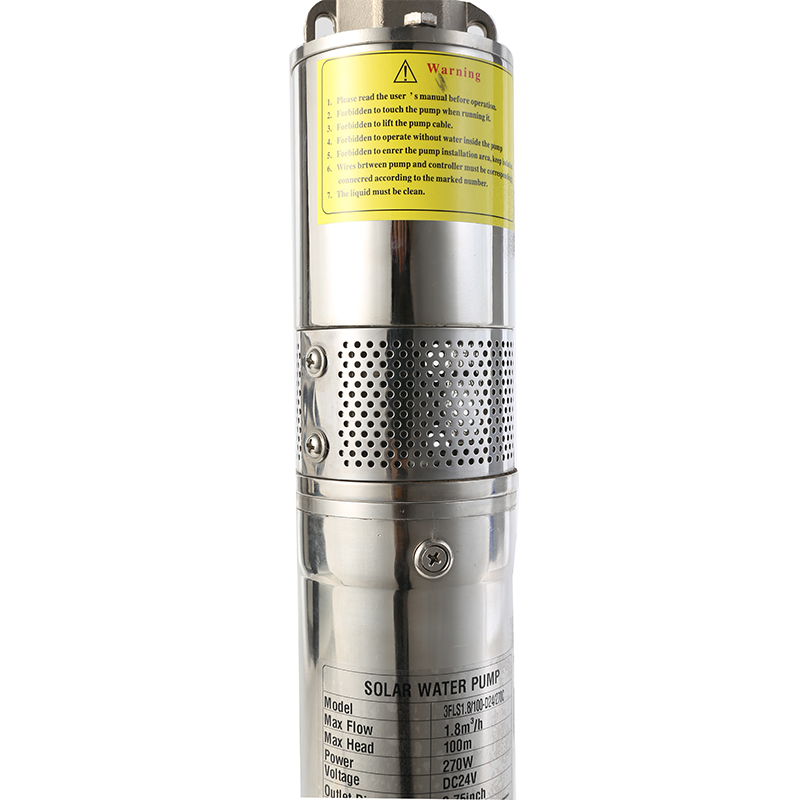

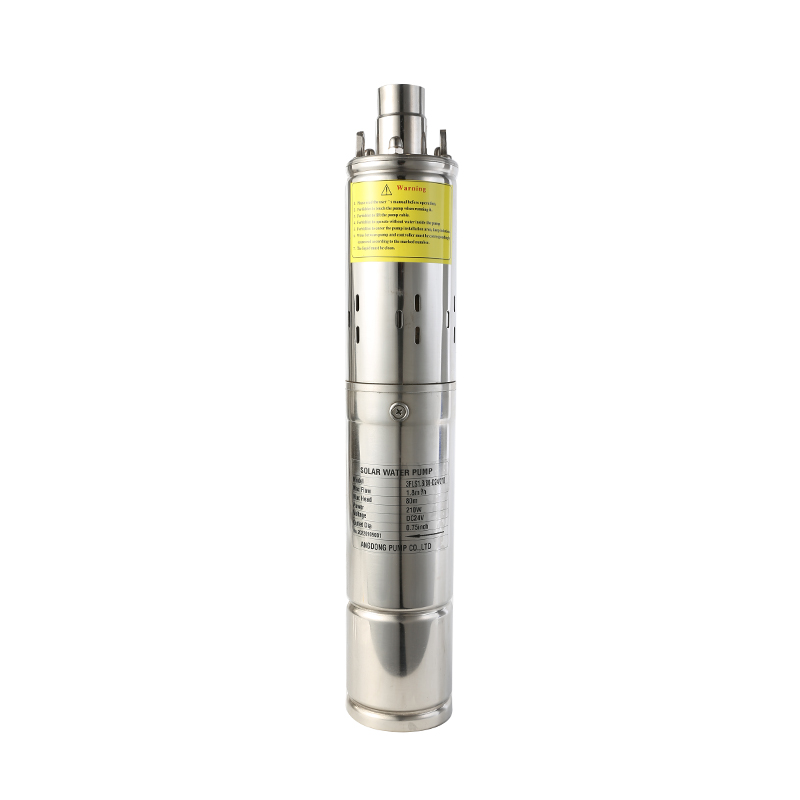

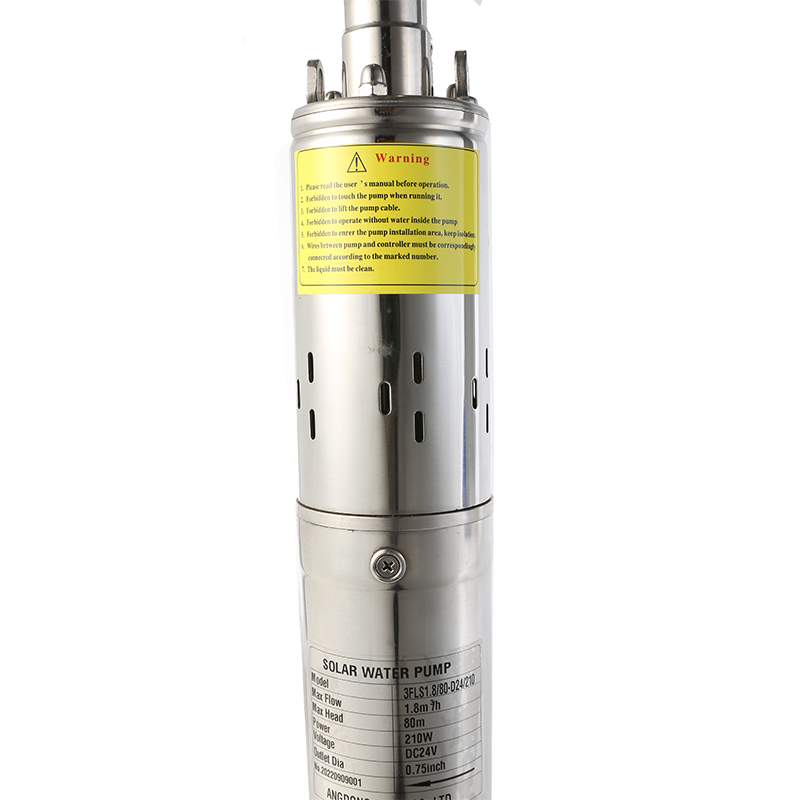

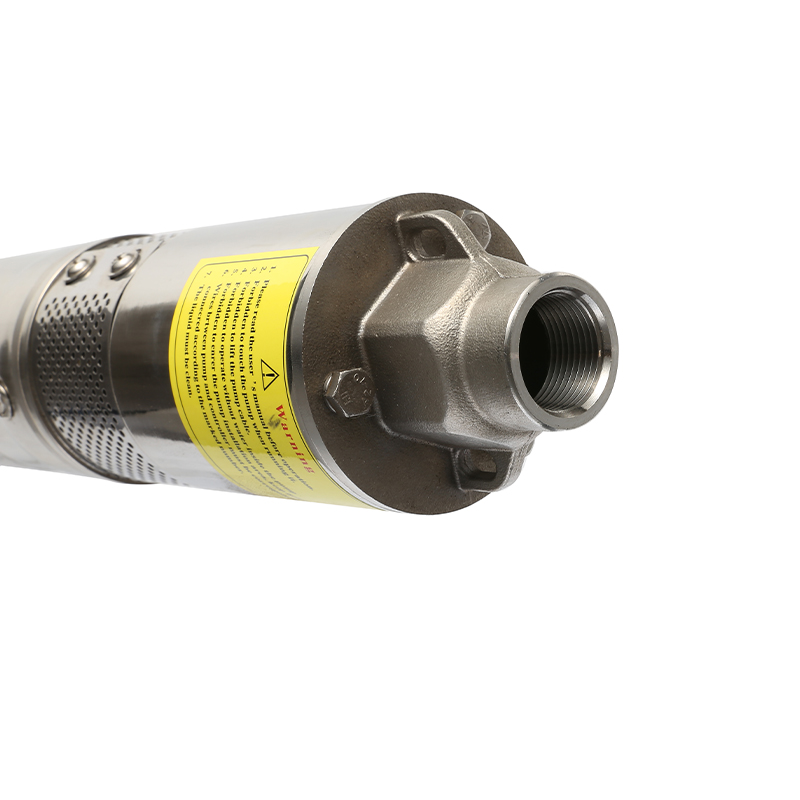

3 Inch Stainless Steel Solar Screw Pump Manufacturers

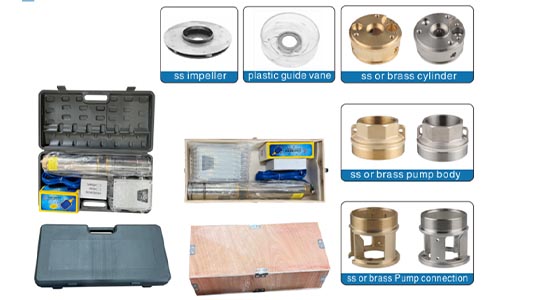

Material of parts

Pump head:	SS304
Pump body:	SS201( SS304 is avaliable)
lmpeller:	Screw
Bearing:	NSK brand
Cable:	3M
Motor:	Permanent magnetic synchronous

Adva ntage of solar water pump

High efficiency because of PMSM

MPPT function

Intelligent water shortage protection

Longer life than normal AC water pump

over-load protechion, under-load protection,

lock-rotor protection, thermal proteciton.

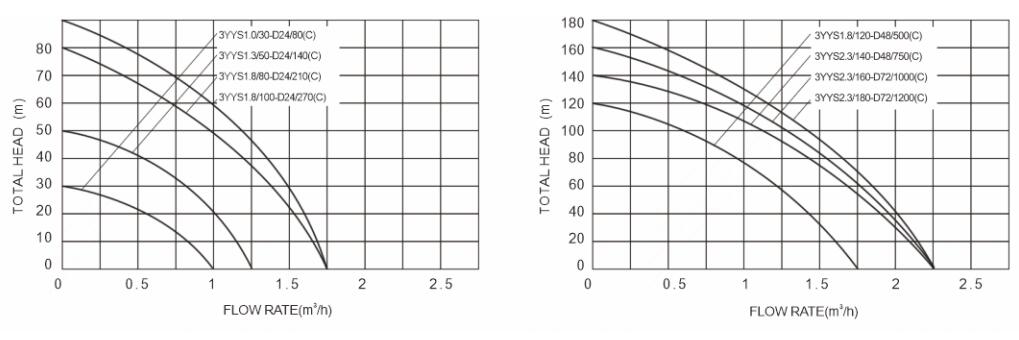

Curve

Technical data

Model	MaxFlow (m³/b)	Max Head (m)	Pump		Pump Dia （inch )	Outlet Dia (inch )	Pump Height (mm)	Solar Panels
Model	MaxFlow (m³/b)	Max Head (m)	voltage（V）	Power（W）	Pump Dia （inch )	Outlet Dia (inch )	Pump Height (mm)	vocrangel(V)	Power(W)
3YYS1.0/30-D24/80(C)	1	30	DC24	80	3	0.75	420	25-50	≥150
3YYS1.3/50-D24/140(C)	1.3	50	DC24	140	3	0.75	420	25-50	≥200
3YYS1.8/80-D24/210(C)	1.8	80	DC24	210	3	0.75	420	25-50	≥300
3YYS1.8/100-D24/270(C)	1.8	100	DC24	3o0	3	0.75	420	25-50	≥500
3YYS1.8/120-D48/500(C)	1.8	120	DC48	500	3	0.75	420	50-100	≥800
3YYS2.3/140-D48/750(C)	2.3	140	DC48	750	3	0.75	420	50-100	≥1000
3YYS2.3/160-D72/1000(C)	2.3	160	DC72	100o	3	0.75	420	75-150	≥1500
3YYS2.3/180-D72/1200(C)	2.3	180	DC72	1200	3	0.75	420	75-150	≥1800
