ZW Series Non Clogging Self-Priming Sewage Pump Manufacturers

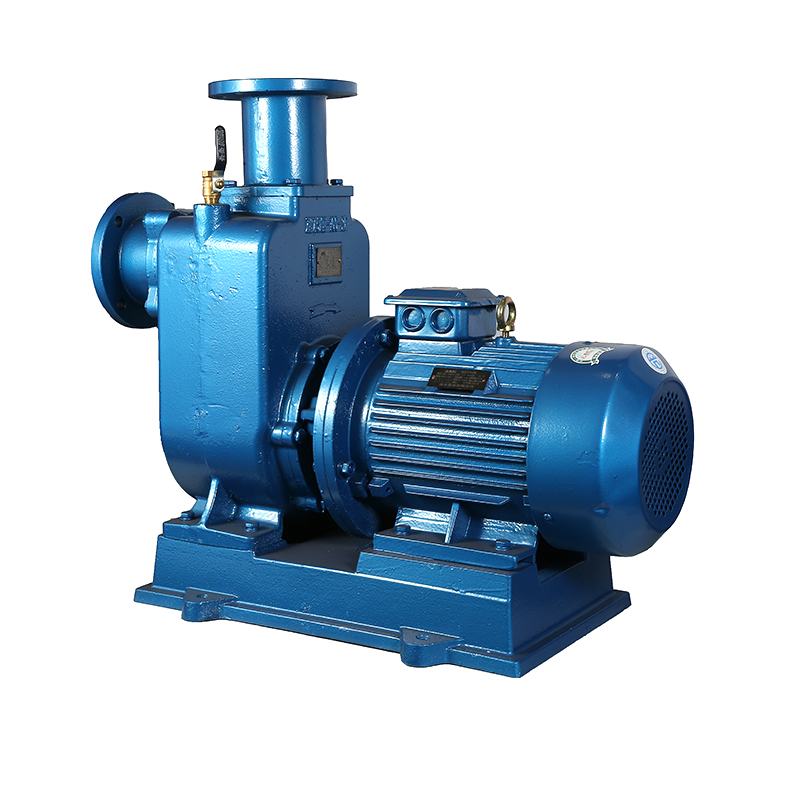

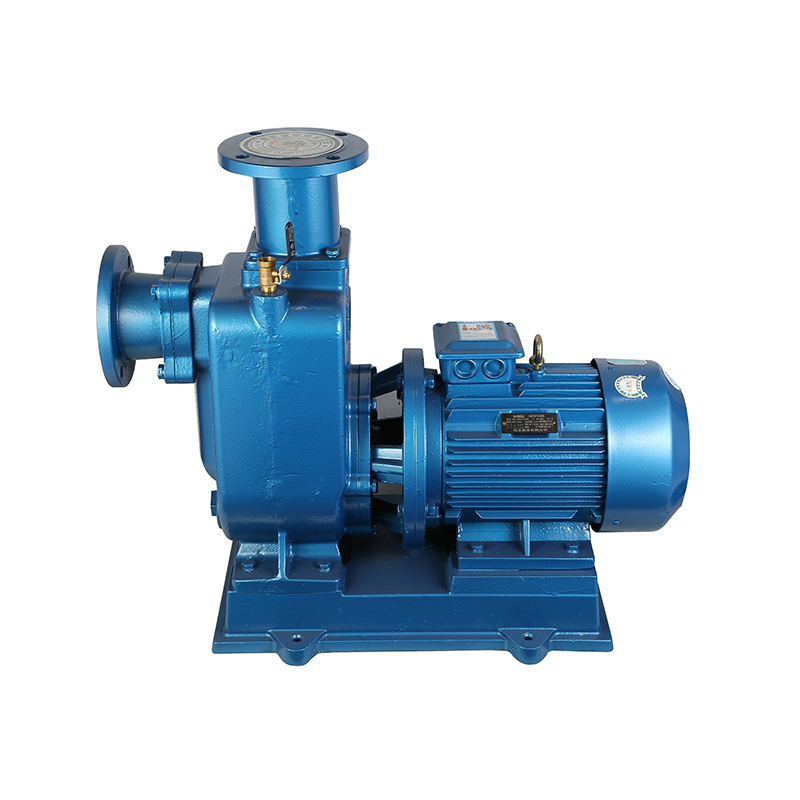

ZW Series Non-Clogging Self-Priming Sewage Pump

Product description:

ZW type non-blocking self-priming sewage pump integrates self-priming and non-blocking sewage discharge. It can suck the dirt containing large solid blocks, long fibers, sediment waste ore impurities, feces like the general clean water self-priming pump. Treatment and all engineering sewage. Strong self-priming ability, easy to use, easy to install, stable and safe performance, small workload and convenient maintenance.

Application:
ZW series non-clogging sewage pump is suitable for industrial and commercial serious pollution waste Discharge of water, sewage discharge station in the main residential area, water system dispatched by urban sewage treatment plant systems, drainage stations of civil air defense systems, water supply equipment in water works, hospitals, hotels sewage discharge, municipal engineering construction sites, mine supporting machines, rural biogas In industries such as gas pools and farmland irrigation, the sewage and dirt of the conveyor belt particles can also be used.For clean water and weak corrosive media.
Conditions of Use:
1. Ambient temperature ≤45C, medium temperature ≤60C.
2. The PH value of the medium is 6-9 for cast iron pumps and 1-14 for stainless steel.
3. The maximum diameter of the passing particles is 60% of the diameter of the pump, and the length of the fiber is the diameter of the pump 5 times.
4. The total weight of impurities in the medium does not exceed 15% of the total weight of the medium, and the medium ratio Weight not exceeding 1240kg/m³.

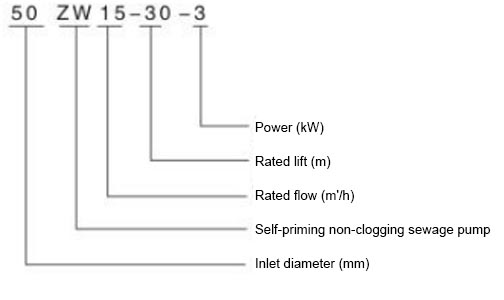

Model meaning:

Technical parameter:

Model	Limited Data (m²h)	Rated lift (m)	Power (kw)	Voltage (V)	Rotating speed (lmin)
Model	Limited Data (m²h)	Rated lift (m)	Power (kw)	Voltage (V)	Rotating speed (lmin)
25ZW8-15	8	15	1.5	380	2900
32ZW10-20	10	20	2.2	380	2900
40ZW20-15	20	15	2.2	380	2900
40ZW15-30	15	30	3	380	2900
5oZW10-20	10	20	2.2	380	2900
50ZW15-30	15	30	3	380	2900
65ZW30-18	30	18	4	380	1450
65ZW20-30	20	30	5.5	380	2900
65ZW25-40	25	40	7.5	380	2900
80ZW40-16	40	16	4	38o	1450
80ZW65-25	65	25	7.5	380	2900
8oZW80-35	80	35	15	380	2900
80ZW50-60	50	60	22	380	2900
100ZW100-15	100	15	7.5	380	1450
100ZW80-20	80	20	7.5	380	1450
100ZW100-30	100	30	22	380	2900
100ZW80-60	80	60	37	380	2900
100zW80-80	80	80	45	380	2900
125ZW150-18	150	18	15	380	1450
150ZW200-15	200	15	15	380	1450
150ZW400-20	400	20	55	380	2900
200ZW300-18	300	18	37	380	1450
200ZW400-22	400	22	55	380	1450

COMPANY PROFILE

As a professional China self-priming sewage pump manufacturers and China self-priming sewage pump suppliers, Angdong Pump Industry Co., Ltd. is a modern enterprise specializing in the research and development, casting, processing, production and sales of sewage pump series. The enterprise introduces advanced fluid technology and enterprise management mode, and strives to build an excellent brand of sewage pumps in the country.

The company mainly produces: WQ/QW non-clogging sewage pump series for engineering, JYWQ automatic stirring sewage pump series, GNWQ cutting sewage pump series, WQK special sewage pump series for septic tank, WQ all stainless steel sewage pump, IRG, ISW series pipeline Centrifugal pump, ZW non-clogging self-priming sewage pump, ZX self-priming clean water pump, sewage lifting pump station, integrated prefabricated pump station, water supply equipment series, etc. Products are widely used in urban building water supply and drainage, municipal engineering, flood control and drainage and other fields.
