WQ/QW Submersible Sewage Pump Manufacturers

Product description:
WQ series submersible sewage pump is composed of water pump, seal and motor. The motor is located in the upper partand is divided into single-phase and three-phase asynchronous motors. Used between pump and motor double- -end mechanicalseal, each fixed end seal is sealed with O-type oil- resistant rubber sealing ring for static sealing. The mechanical seal of key parts adopts cemented carbide and high-quality silicon carbide as material, the shaft is made of 45 # steel or stainless steel, to ensure the shaft has reliable mechanical strength and certain wear resistance and corrosion resistance.
The stator of the high- power sewage pump is embedded with a thermal control switch. Normal temperature is "normally closed" state, when the stator temperature reaches 125C, the switch opens. A water leakage probe is installed in the oil chamber for water leakage detection. The signal line of the oil and water intake probe is connected.Connect any line to the leakage circuit breaker; when the mechanical seal on the pump side leaks and the oil- -water ratio in the oil chamber reaches a certain concentration, the oil-water probe will send an alarm signal and the power supply is cut off and the pump stops working automatically.

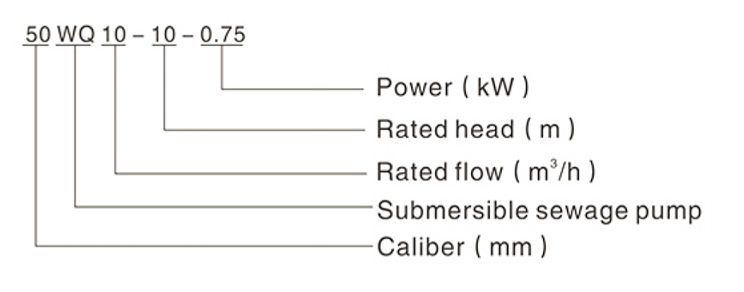

Model meaning:

Table of performance parameters
N0. Model Rated flow
(m3/h)		 Rated head
(m)		 PoWer
(kW)		 outlet
mm)		 Speed
(r/min)		 No. Model Rated floW
( m3/h )		 Rated head
(m)		 PoWer
(kW)		 Outlet
(mm)		 Speed
(r/min)
1 25WQ5-18-0.75 5 18 0.75 25 2900 23 50WQ15-35-4 15 35 4 50 2900
2 32WQ6-16-0.75 6 16 0.75 32 2900 24 50WQ40-15-4 40 15 4 50 2900
3 40WQ7-15-0.75 7 15 0.75 40 2900 25 65WQ20-25-4 20 25 4 65 2900
4 50WQ10-10-0.75 10 10 0.75 50 2900 26 80WQ40-15-4 40 15 4 80 2900
5 65WQ15-7-0.75 15 7 0.75 65 2900 27 100WQ60-12-4 60 12 4 100 2900
6 25WQ8-18-1.1 8 18 1.1 25 2900 28 50WQ20-40-5.5 20 40 5.5 50 2900
7 32WQ12-15-1.1 12 15 1.1 32 2900 29 65WQ25-35-5.5 25 35 5.5 65 2900
8 40WQ7-18-1.1 7 18 1.1 40 2900 30 80WQ30-30-5.5 30 30 5.5 80 2900
9 50WQ9-15-1.1 9 15 1.1 50 2900 31 100WQ65-18-5.5 65 18 5.5 100 2900
10 65WQ15-9-1.1 15 9 1.1 65 2900 32 50WQ20-45-7.5 20 45 7.5 50 2900
11 50WQ15-15-1.5 15 15 1.5 50 2900 33 65WQ30-40-7.5 30 40 7.5 65 2900
12 50WQ20-15-1.5 20 15 1.5 50 2900 34 65WQ40-30-7.5 40 30 7.5 65 2900
13 65WQ25-7-1.5 25 7 1.5 65 2900 35 80WQ65-25-7.5 65 25 7.5 80 2900
14 80WQ40-8-1.5 40 8 1.5 80 2900 36 100WQ80-15-7.5 80 15 7.5 100 2900
15 50WQ15-20-2.2 15 20 2.2 50 2900 37 150WQ100-15-7.5 100 15 7.5 150 2900
16 65WQ20-15-2.2 20 15 2.2 65 2900 38 50WQ20-60-11 20 60 11 50 2900
17 65WQ25-15-2.2 25 15 2.2 65 2900 39 65WQ30-50-11 30 50 11 65 2900
18 80WQ40-10-2.2 40 10 2.2 80 2900 40 80WQ40-40-11 40 40 11 80 2900
19 50WQ15-30-3 15 30 3 50 2900 41 100WQ80-25-11 80 25 11 100 2900
20 65WQ37-13-3 37 13 3 65 2900 42 150WQ150-12-11 150 12 11 150 2900
21 80WQ45-12-3 45 12 3 45 2900 43 200WQ200-9-11 200 9 11 200 2900
22 100WQ60-9-3 60 9 3 60 2900 44 50WQ30-60-15 30 60 15 50 2900
Table of performance parameters
N0. Model Rated flow
(m3/h)		 Rated head
(m)		 Power
(kW)		 outlet
mm)		 Speed
(r/min)		 No. Model Rated flow
( m3/h )		 Rated head
(m)		 Power
(kW)		 Outlet
(mm)		 Speed
(r/min)
45 65WQ35-55-15 35 55 15 65 2900 85 300WQ650-7-22 650 7 22 300 1450
46 80WQ45-52-15 45 52 15 80 2900 86 100WQ120-45-30 120 45 30 100 1450
47 100WQ60-45-15 60 45 15 100 2900 87 150WQ180-30-30 180 30 30 150 1450
48 150WQ150-20-15 150 20 15 150 2900 88 150WQ250-22-30 250 22 30 150 1450
49 200WQ250-11-15 250 11 15 200 2900 89 200WQ400-13-30 400 13 30 200 1450
50 50WQ20-80-18.5 20 80 18.5 50 2900 90 250WQ600-9-30 600 9 30 250 1450
51 65WQ30-68-18.5 30 68 18.5 65 2900 91 300WQ800-7-30 800 7 30 300 1450
52 80WQ60-45-18.5 60 45 18.5 80 2900 92 100WQ120-50-37 120 50 37 100 1450
53 100WQ80-40-18.5 80 40 18.5 100 2900 93 150WQ200-30-37 200 30 37 150 1450
54 150WQ100-36-18.5 100 36 18.5 150 2900 94 200WQ350-25-37 350 25 37 200 1450
55 200WQ180-18-18.5 180 18 18.5 200 2900 95 250WQ600-12-37 600 12 37 250 1450
56 50WQ20-90-22 20 90 22 50 2900 96 300WQ800-10-37 800 10 37 300 1450
57 65WQ30-75-22 30 75 22 65 2900 97 350WQ1000-6-37 1000 6 37 350 1450
58 80WC60-50-22 60 50 22 80 2900 98 350WQ1100-6-7 1100 6 37 350 960
59 100WQ80-45-22 80 45 22 100 2900 99 400WQ1300-6-37 1300 6 37 400 980
60 150WQ100-40-22 100 40 22 150 2900 100 100WQ100-57-45 100 57 45 100 1450
61 200WQ200-20-22 200 20 22 200 2900 101 150WQ200-35-45 200 35 45 150 1450
62 100WQ110-10-5.5 110 10 5.5 100 1450 102 200WQ300-32-45 300 32 45 200 1450
63 150WQ140-7-5.5 140 7 5.5 150 1450 103 200WQ400-25-45 400 25 45 200 1450
64 100WQ100-15-7.5 100 15 7.5 100 1450 104 250WQ600-15-45 600 15 45 250 1450
65 150WQ145-9-7.5 145 9 7.5 150 1450 105 300WQ800-12-45 800 12 45 300 1450
66 100WQ100-25-11 100 25 1 100 1450 106 350WQ1200-8-45 1200 8 45 350 1450
67 150WQ130-15-11 130 15 11 150 1450 107 350WQ1300-8-45 1300 8 45 350 980
68 200WQ300-7-11 300 7 11 200 1450 108 400WQ1700-6-45 1700 6 45 400 980
69 250WQ400-5-11 400 5 11 250 1450 109 100WQ100-65-55 100 65 55 100 1450
70 100WQ100-30-15 100 30 15 100 1450 110 150WQ200-50-55 200 50 55 150 1450
71 150WQ180-15-15 1B0 15 15 150 1450 111 200WQ400-30-55 400 30 55 200 1450
72 200WQ220-12-15 220 12 15 200 1450 112 200WQ300-40-55 300 40 55 200 1450
73 250WQ500-5-15 500 5 15 250 1450 113 250WQ600-20-55 600 20 55 250 1450
74 100WQ100-35-18.5 100 35 18.5 100 1450 114 300WQ800-15-55 800 15 55 300 1450
75 150WQ180-20-18.5 180 20 18.5 150 1450 115 350WQ1000-10-55 1000 10 55 350 1450
76 200WQ250-15-18.5 250 15 18.5 200 1450 116 350WQ1100-10-55 1100 10 55 350 980
75 250WQ400-7-18.5 400 7 18.5 250 1450 117 400WQ1500-8-55 1500 8 55 400 980
78 300WQ650-5-18.5 650 5 18.5 300 1450 118 500WQ2200-5-55 2200 5 55 500 980
79 100WQ100-40-22 100 40 22 100 1450 119 100WQ120-75-75 120 75 75 100 1450
80 150WQ200-22-22 200 22 22 150 1450 120 150WQ200-57-75 200 57 75 150 1450
81 150WQ180-25- 22 180 25 22 150 1450 121 200WQ350-45-75 350 45 75 200 1450
82 200WQ300-15-22 300 15 22 200 1450 122 250WQ600-25-75 600 25 75 250 1450
83 200WQ400-10-22 400 10 22 200 1450 123 300WQ800-20-75 800 20 75 300 1450
84 250WQ500-7-22 500 7 22 250 1450 124 350WQ1000-15-75 1000 15 75 350 1450
Table of performance parameters
N0. Model Rated flow
(m3/h)		 Rated head
(m)		 PoWer
(kW)		 outlet
(mm)		 Speed
(r/min)		 No. Model Rated flow
( m3/h )		 Rated head
(m)		 Power
(kW)		 Outlet
(mm)		 Speed
(r/min)
125 350WQ1500-12-75 1500 12 75 350 980 165 500WQ2600-16-160 2600 16 160 500 980
126 400WQ1700-10-75 1700 10 75 400 980 166 500WQ3000-14-160 3000 14 160 500 740
127 500WQ2000-8-75 2000 8 75 500 980 167 600WQ3700-10-160 3700 10 160 600 980
128 100WQ120-85-90 120 85 90 100 1450 168 800WQ4000-10-160 4000 10 160 600 740
129 150WQ200-65-90 200 65 90 150 1450 169 150WQ200-10-15 200 110 185 150 1450
130 200WQ300-55-90 300 55 90 200 1450 170 200WQ400-90-185 400 90 185 200 1450
131 250WQ600-30-90 600 30 90 250 1450 171 250WQ600-70-185 600 70 185 250 1450
132 300WQ800-25-90 800 25 90 300 1450 172 300WQ900-40-185 900 40 185 300 1450
133 350WQ1000-18-90 1000 18 9 350 1450 173 350WQ1100-38-185 1100 38 185 350 1450
134 350WQ1200-18-90 1200 18 90 350 980 174 400WQ1600-25-185 1600 25  185 400 1450
135 400WQ1500-15-90 1500 15 90 400 980 175 400WQ2000-20-185 2000 20 185 400 980
136 500WQ2000-10-90 2000 10 90 500 980 176 500WQ2200-18-185 2200 16 185 500 1450
137 100WQ100-100-11 100 100 110 100 1450 177 500WQ3000-15-185 3000 15 185 500 980
138 150WQ180-80-110 180 80 110 150 1450 178 500WQ3200-15-185 3200 15  185 500 740
139 200WQ300-65-110 300 65 110 200 1450 179 600WQ3700-12-185 3700 12 185 600 980
140  250WQ600-35-110 600 35 110 250 1450 180 600WQ4000-12-185 4000 12 185 600 740
141 300WQ1000-25-110 1000 25 110 300 1450 181 250WQ700-75-200 700 75 200 250 1450
142 350WQ1300-20-110 1300 20 110 350 1450 182 300WQ1000-45-200 1000 45 200 300 1450
143 350WQ1600-16-110 1600 16 110 350 980 183 350WQ1300-35-200 1300 35 200 350 1450
144 400WQ1800-15-110 1800 15 110 400 980 184 400WQ1600-30-200 1600 30 200 400 1450
145 500WQ2500-10-110 2500 10 110 500 980 185 400WQ2300-22-200 2300 22 200 400 980
146 150WQ200-90-132 200 90 132 150 1450 186 500WQ2500-20-200 2500 20 200 500 1450
147 200WQ400-75-132 400 75 132 200 1450 187 500WQ3500-15-200 3500 15 200 500 980
148 250WQ600-40-132 600 40 132 250 1450 188 600WQ4500-12-200 4500 12 200 600 980
149 300WQ800-36-132 800 36 132 300 1450 189 300WQ1100-45-250 1100 45 250 300 1450
150 350W1100-28-132 1100 28 132 350 1450 190 350WQ1500-36-250 1500 36 250 350 1450
151 400WQ1700-16-132 1700 16 132 400 1450 191 400WQ1800-30-250 1800 30 250 400 1450
152 400WQ2000-15-132 2000 15 132 400 980 192 400WQ2200-28-250 2200 28 250 400 980
153 500WQ2800-10-132 2800 10 132 500 980 193 500WQ3000-21-250 3000 21 250 500 980
154 500WQ3100-10-132 3100 10 132 500 740 194 600WQ4000-18-250 4000 18 250 600 980
155 600WQ3700-8-132 3700 8 132 600 980 195 300WQ1000-55-315 1000 55 315 300 1450
156 600WQ4000-8-132 4000 8 132 600 740 196 350WQ1500-45-315 1500 45 315 350 1450
157 150WQ220-10-160 220 100 160 150 1450 187 400WQ2000-36-315 2000 36 315 400 1450
158 200WQ400-85-160 400 85 160 200 1450 198 500WQ3500-25-315 3500 25 315 500 980
159 250WQ600-60-160 600 60 160 250 1450 199 600WQ4500-20-315 4500 20 315 600 980
160 300WQ800-40-160 800 40 160 300 1450 200 500WQ3000-35-400 3000 35 400 500 980
161 350WQ1000-35-160 1000 35 160 350 1450 201 600WQ5000-22-400 5000 22 400 600 980
162 400WQ1600-22-160 1600 22 160 400 1450 202 500WQ4000-32-550 4000 32 550 500 980
163 400WQ2000-18-160 2000 18 160 400 980 203 600WQ5500-25-550 5500 25 550 600 980
164 500WQ2300-16-160 2300 16 160 500 1450
COMPANY PROFILE

As a professional China WQ submersible sewage pump manufacturers and China WQ submersible sewage pump suppliers, Angdong Pump Industry Co., Ltd. is a modern enterprise specializing in the research and development, casting, processing, production and sales of sewage pump series. The enterprise introduces advanced fluid technology and enterprise management mode, and strives to build an excellent brand of sewage pumps in the country.

The company mainly produces: WQ/QW non-clogging sewage pump series for engineering, JYWQ automatic stirring sewage pump series, GNWQ cutting sewage pump series, WQK special sewage pump series for septic tank, WQ all stainless steel sewage pump, IRG, ISW series pipeline Centrifugal pump, ZW non-clogging self-priming sewage pump, ZX self-priming clean water pump, sewage lifting pump station, integrated prefabricated pump station, water supply equipment series, etc. Products are widely used in urban building water supply and drainage, municipal engineering, flood control and drainage and other fields.

Recommended Products:

Certificates:

Your contact details

If you are interested in our Products or have any questions, please consult us.

Contact us

Industry Knowledge

INDUSTRY KNOWLEDGE EXTENSION

WQ submersible sewage pump is a water pump used for sewage treatment and discharge. It is usually installed in sewage collection pits or sewage treatment tanks, and is used to transport sewage from low to high treatment equipment or discharge pipes. WQ submersible sewage pump has the advantages of compact structure, reliable performance and long service life, and can be widely used in urban drainage systems, industrial sewage treatment, building drainage and other fields.


What is unique about WQ submersible sewage pump?
WQ submersible sewage pump has the following unique features:
Submersible Design: WQ Submersible Sewage Pump is a submersible water pump that can be completely installed in sewage without occupying floor space, which can avoid odor and noise pollution.
Large flow, high head: WQ submersible sewage pump is designed to be able to transport large flow, high head sewage, suitable for sewage treatment under high load conditions such as large sewage treatment plants, industrial parks, and urban drainage systems.
Excellent wear resistance: The rotor and impeller of the WQ submersible sewage pump are made of high-quality stainless steel, which has strong corrosion resistance and wear resistance, and can run stably for a long time, reducing the maintenance cost of the equipment.
Automatic control system: WQ submersible sewage pumps are usually equipped with an intelligent control system, which can automatically start and stop, monitor water level and temperature, and alarm, etc., which improves the stability and reliability of the equipment.
Wide application: WQ submersible sewage pump can be widely used in urban drainage systems, sewage treatment plants, industrial parks, building drainage and other fields. It is a very important and practical sewage treatment equipment.


What does the WQ of the WQ submersible sewage pump stand for?
WQ is the model code of WQ submersible sewage pump, where "W" stands for sewage and "Q" stands for diving. Therefore, the model code of WQ submersible sewage pump can be understood as the abbreviation of "submersible sewage pump".
