OEM/ODM WQR High Temperature Resistant Sewage Pump

Home / Product / Sewage Pump / WQR High Temperature Resistant Sewage Pump

Product



News

WQR High Temperature Resistant Sewage Pump Manufacturers

Application:
1. Boiler water transportation.
2. Drainage in hotel laundry room.
3. Hot water delivery in power plants and steel plants.

Conditions of Use:
1. The temperature of the medium does not exceed 120C, and the density is 1.0-1 .3kg/m3.
2. The exposed liquid level of the motor part does not exceed 1/2.
3. The pump must be used within the head range to ensure that the motor is not overloaded.

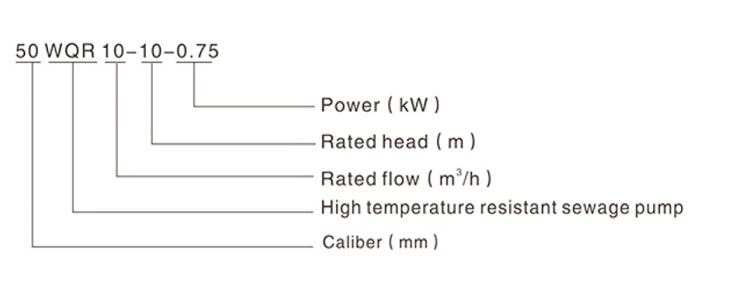

Model meaning:

Table of performance parameters
No. Model Rated floW Rated head PoWer outlet voltage Speed
1 25WQR5-18-0.75  5 18 0.75 25 220 2900
2 32WQR6-16-0.75 6 16 0.75 32 220 2900
3 40WQR7-15-0.75  7 15 0.75 40 220 2900
4 50WQR10-10-0.75 10 10 0.75 50 220 2900
5 40WQR7-18-1.1 7 18 1.1 40 220 2900
6 50WQR9-15-1.1 9 15 1.1 50 220 2900
7 65WQR15-9-1.1 15 9 1.1 65 220 2900
8 50WQR15-15-1.5 15 15 1.5 50 220 2900
9 65WQR25-7-1.5 25 7 1.5 65 220 2900
10 80WQR40-8-1.5 40 8 1.5 80 220 2900
11 50WQR15-20-2.2 15 20 2.2 50 220 2900
12 65WQR20-15-2.2  20 15 2.2 65 220 2900
13 80WQR40-10-2.2  40 10 2.2 80 220 2900
14 100WQR50-7-2.2 50 7 2.2 100 220 2900
15 50WQR15-30-3  15 30 3 50 220 2900
16 65WQR37-13-3  37 13 3 65 220 2900
17 80WQR45-12-3. 45 12 3 80 220 2900
18 100WQR60-9-3 60 9 3 100 220 2900
19 50WQR15-35-4  15 35 4 50 220 2900
20 65WQR20-25-4  20 25 4 65 220 2900

Table of performance parameters
No. Model Ratedflow(m3/h) Ratedhead(m) Power(kw) Outlet(mm) Speed(r/min) No. Model Ratedflow(m3/h) Ratedhead(m) Power(kw) outlet(mm) Speed(r/min)
21 80WQR 40-15-4 40 15 4 80 2900 51 200WQR 250-11-15 250 11 15 200 2900
22 100WQR 60-12-4 60 12 4 100 2900 52 200WQR 200-12-15 200 12 15 200 1450
23 50WQR 20-40-5.5 20 40 5.5 50 2900 53 100WQR 100-35-18.5 100 35 18.5 100 1450
24 65WQR 25-35-5.5 25 35 5.5 65 2900 54 150WQR 180-20-18.5 180 20 18.5 150 1450
25 80WQR 30-30-5.5 30 30 5.5 80 2900 55 200WQR 250-15-18.5 250 15 18.5 200 1450
26 100WQR 65-18-5.5 65 18 5.5 100 2900 56 250WQR 400-7-18.5 400 7 18.5 250 1450
27 150WQR 100-10-5.5 100 10 5.5 150 2900 57 100WQR 100-40-22 100 40 22 100 1450
28 50WQR 20-50-7.5 20 50 7.5 50 2900 58 150WQR 200-22-22 200 22 22 150 1450
29 65WQR 30-40-7.5 30 40 7.5 65 2900 59 150WQR 180-25-22 180 25 22 150 1450
30 65WQR 40-30-7.5 40 30 7.5 65 2900 60 200WQR 300-15-22 300 15 22 200 1450
31 80WQR 65-25-7.5 65 25 7.5 80 2900 61 200WQR 400-10-22 400 10 22 200 1450
32 100WQR 80-15-7.5 80 15 7.5 100 100 62 250WQR 500-7-22 500 7 22 250 1450
33 150WQR 100-15-7.5 100 15 7.5 150 2900 63 100WQR 120-45-30 120 45 30 100 1450
34 200WQR 250-6-7.5 250 6 7.5 200 1450 64 150WQR 180-30-30 180 30 30 150 1450
35 50WQR 20-60-11 20 60 11 50 2900 65 150WQR 250-22-30 250 22 30 150 1450
36 65WQR 30-50-11 30 50 11 65 2900 66 200WQR 400-13-30 400 13 30 200 1450
37 80WQR 40-40-11 40 40 11 80 2900 67 250WQR 600-9-30 600 9 30 250 1450
38 100WQR 80-25-11 80 25 11 100 2900 68 300WQR 800-7-30 800 7 30 300 1450
39 100WQR 100-25-11 1000 25 11 100 1450 69 100WQR 120-50-37 120 50 37 100 1450
40 150WQR 150-12-11 150 12 11 150 2900 70 150WQR 200-30-37 200 30 37 150 1450
41 150WQR 130-15-11 130 15 11 150 1450 71 200WQR 350-25-37 350 25 37 200 1450
42 200WQR 200-9-11 200 9 11 200 2900 72 250WQR 600-12-37 600 12 37 250 1450
43 200WQR 300-7-11 300 7 11 200 1450 73 300WQR 800-10-37 800 10 37 300 1450
44 50WQR 30-60-15 30 60 15 50 2900 74 350WQR 1000-6-37 1000 6 37 350 1450
45 65WQR 35-55-15 35 55 15 65 2900 75 100WQR 100-57-45 100 57 45 100 1450
46 80WQR 45-52-15 45 52 15 80 2900 76 150WQR 200-35-45 200 35 45 150 1450
47 100WQR 60-45-15 60 45 15 100 2900 77 200WQR 400-25-45 400 25 45 200 1450
48 100WQR 100-30-15 100 30 15 100 1450 78 250WQR 600-15-45 600 15 45 250 1450
49 150WQR 150-20-15 150 20 15 150 2900 79 300WQR 800-12-45 800 12 45 300 1450
50 150WQR 180-15-15 180 15 15 150 1450 80 350WQR 1200-8-45 1200 8 45 350 1450
COMPANY PROFILE

As a professional China WQR High Temperature Resistant Sewage Pump manufacturers and China WQR High Temperature Resistant Sewage Pump factory, Angdong Pump Industry Co., Ltd. is a modern enterprise specializing in the research and development, casting, processing, production and sales of sewage pump series. The enterprise introduces advanced fluid technology and enterprise management mode, and strives to build an excellent brand of sewage pumps in the country.

The company mainly produces: WQ/QW non-clogging sewage pump series for engineering, JYWQ automatic stirring sewage pump series, GNWQ cutting sewage pump series, WQK special sewage pump series for septic tank, WQ all stainless steel sewage pump, IRG, ISW series pipeline Centrifugal pump, ZW non-clogging self-priming sewage pump, ZX self-priming clean water pump, sewage lifting pump station, integrated prefabricated pump station, water supply equipment series, etc. Products are widely used in urban building water supply and drainage, municipal engineering, flood control and drainage and other fields.

Recommended Products:

Certificates:

Your contact details

If you are interested in our Products or have any questions, please consult us.

Contact us

Industry Knowledge

INDUSTRY KNOWLEDGE EXTENSION

WQR high temperature resistant sewage pump is a kind of sewage treatment equipment suitable for high temperature environment, which has the following advantages:
Good high temperature resistance: WQR high temperature resistant sewage pump is made of high temperature resistant materials, can withstand working conditions in high temperature environment, and has good high temperature resistance.
Good water tightness: WQR high temperature resistant sewage pump has good water tightness performance, which can effectively avoid the infiltration and leakage of water inside and outside the pump body, and ensure the safety and reliability of the equipment.
Strong anti-clogging performance: The impeller of WQR high temperature resistant sewage pump has good anti-clogging performance, which can effectively treat sewage containing large particles, high concentration and high viscosity, and avoid clogging and failure.
Strong adaptability: WQR high-temperature sewage pump is suitable for high-temperature sewage treatment and other occasions, and can handle high-temperature sewage, sewage containing corrosive substances, sewage containing solid particles, etc.
Easy maintenance: WQR high temperature resistant sewage pump adopts modular design, which is convenient for maintenance and replacement of impellers, mechanical seals and other components.
To sum up, the WQR high temperature sewage pump has the advantages of high temperature resistance, good water tightness, strong anti-blocking performance, strong adaptability, and convenient maintenance. It is a high-temperature sewage treatment equipment with stable performance, safety, reliability, and long service life.
How much high temperature can WQR high temperature resistant sewage pump withstand?
The high temperature resistant temperature range of WQR high temperature resistant sewage pumps is generally 0°C~200°C. The high temperature range that different manufacturers and models of high temperature resistant sewage pumps can withstand may be slightly different, which needs to be confirmed according to specific product parameters. When selecting and using WQR high temperature resistant sewage pump, we must pay attention to its high temperature resistant temperature range, and follow the use and maintenance requirements in the product manual to ensure the normal operation and service life of the equipment.
Where are WQR high temperature resistant sewage pumps suitable for use?
WQR high temperature resistant sewage pump is suitable for the following occasions:
High-temperature environment: WQR high-temperature-resistant sewage pumps can withstand working conditions in high-temperature environments, and are suitable for treating high-temperature sewage, sewage containing corrosive substances, sewage containing solid particles, etc.
Chemical, pharmaceutical, food and other industries: WQR high temperature resistant sewage pump is made of high temperature resistant materials, suitable for high temperature sewage treatment in chemical, pharmaceutical, food and other industries.
Sewage treatment plants: WQR high temperature resistant sewage pumps can be used for high temperature sewage treatment and sludge pumping in sewage treatment plants.
Hot water circulation system: WQR high temperature resistant sewage pump can be used for the circulation pump of the hot water circulation system and the booster pump of the hot water supply system.
High temperature liquid transportation: WQR high temperature resistant sewage pump can be used for the transportation and circulation of high temperature liquid.
It should be noted that WQR high temperature resistant sewage pumps are suitable for specific working conditions and environments. When selecting and using them, comprehensive consideration and evaluation should be carried out according to specific occasions and requirements to ensure the normal operation and service life of the equipment.
