WL-LW Series Vertical Sewage Pump

Product description:

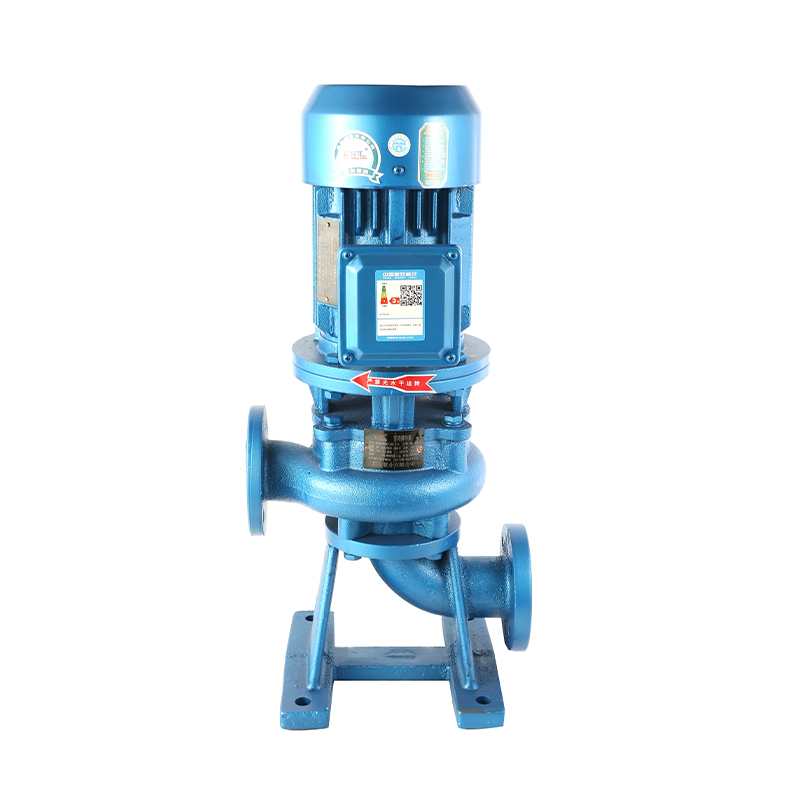

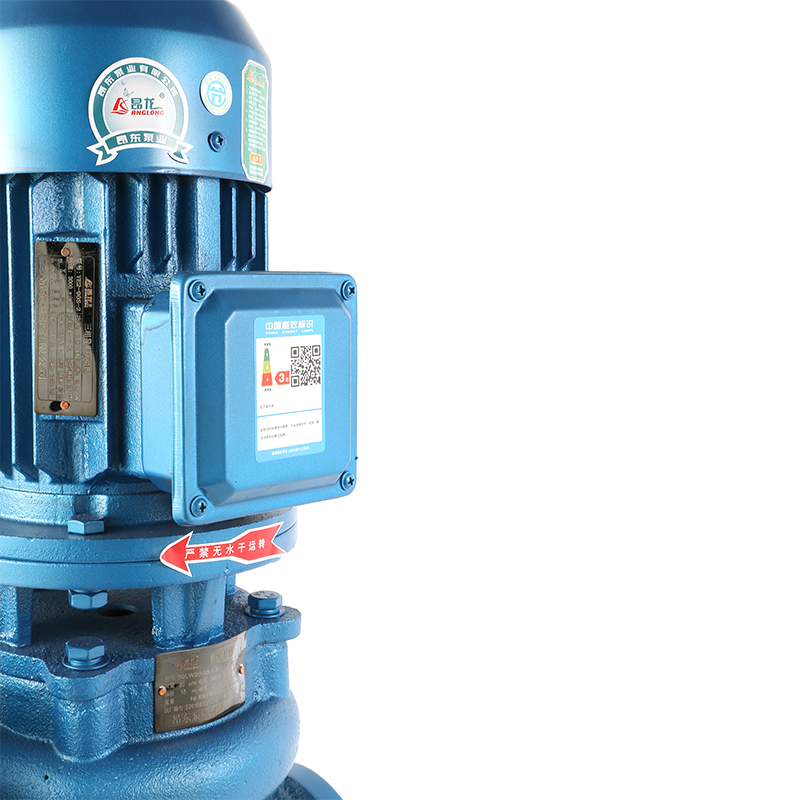

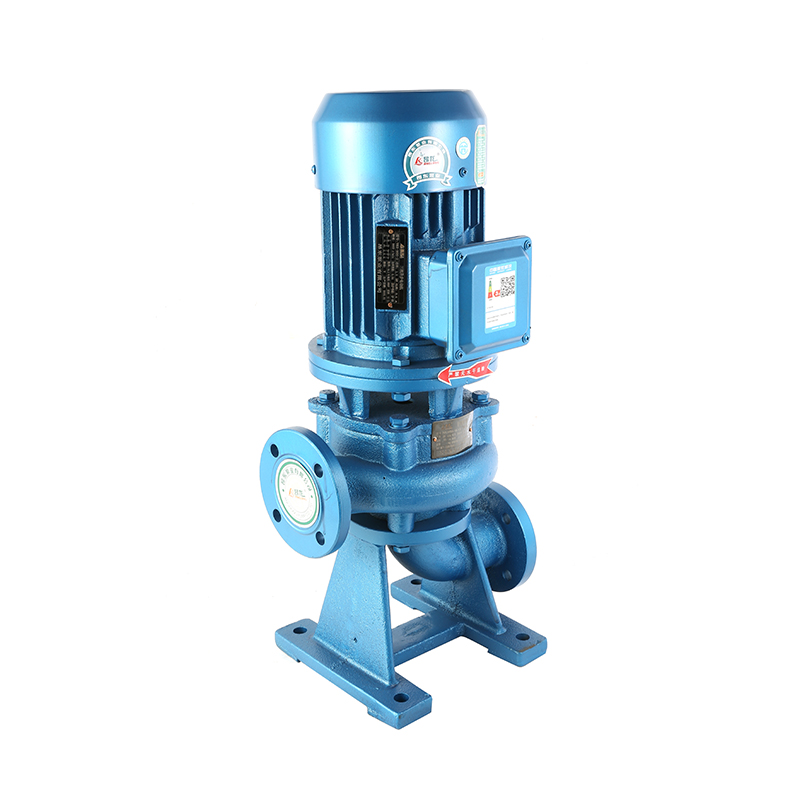

WL, LW type vertical sewage pump mainly consists of shaft, bearing frame, pump cover, impeller, pump seat, motor

bracket, motor and other components. The pump is a vertical single-stage single-suction volute pump with a double flow structure of the impeller.

It can effectively pass fibrous materials of 5 times of the pump diameter and solid particles of 50% of the diameter of the pump.

Features:

1. safe and reliable, reduce maintenance costs: after the balance of the rotor components and reasonable bearing layout

effectively balance the radial force and axial force of the pump, thus ensuring the long-term stable operation of the unit.

and has small vibration and low noise.

2. Strong over-flow capacity: smooth large flow channel, special impeller anti-clogging design, to ensure efficient operation of the pump

and non-clogging.

3. Double sealing and double protection: two double machine seals are configured in tandem to achieve double protection and ensure motor

safety.
Conditions of use:

1. The power supply should be three-phase 50 Hz, rated at 380 volts, and its supply voltage must be guaranteed to be in the range of 342 to 420 volt range.

2. The pump should be used within the applicable range near the rated head
Working conditions:

Medium temperature: - 15C~ +809

Medium density: ≤1.3x 103 kg/m'

Medium PH value: 2-12 acidic and alkaline media to use stainless steel pumps

Model	Flow rate(mm)	Lift(m)	Power(W)	Calibre（mm）	Rotational speed(r/min)	Model	Flow rate(mm)	Lift(m)	Power(W)	Calibre（mm）	Rotational speed(r/min)

25-8-22-1.1	8	22	1.1	25	2900	150-220-30-37	220	30	37	150	1450
32-12-15-1.1	12	15	1.1	32	2900	200-300-7-11	300	7	11	200	980
40-15-15-1.5	15	15	1.5	40	2900	200-250-11-15	250	11	15	200	980
40-15-30-2.2	15	30	2.2	40	2900	200-250-15-18.5	250	15	18.5	200	1450
50-20-7-0.75	20	7	0.75	50	2900	200-400-10-22	400	10	22	200	1450
50-10-10-0.75	10	10	0.75	50	2900	200-400-13-30	400	13	30	200	1450
50-20-15-1.5	20	15	1.5	50	2900	200-300-15-22	300	15	22	200	1450
50-15-25-2.2	15	25	2.2	50	2900	200-250-22-30	250	22	30	200	1450
50-18-30-3	18	30	3	50	2900	200-350-25-37	350	25	37	200	1450
50-40-15-4	40	15		50	2900	200-400-30-45	400	30	45	200	1450
50-25-32-5.5	25	32	5.5	50	2900	250-600-9-30	600	9	30	250	1450
50-20-10-7.5	20	10	7.5	50	2900	250-600-12-37	600	12	37	250	980
65-25-15-2.2	25	15	2.2	65	2900	250-600-15-45	600	15	45	250	1450
65-37-13-3	37	13	3	65	2900	250-600-20-55	600	20	55	250	1450
65-25-30-4	25	30		65	2900	250-600-25-75	600	25	75	250	1450
65-30-40-7.5	30	40	7.5	65	2900	250-800-12-45	800	12	45	250	1450
65-35-50-11	35	50	11	65	2900	300-500-15-45	500	15	45	300	980
65-35-60-15	35	60	15	65	2900	300-800-15-55	800	15	55	300	980
80-60-18-5.5	60	18	5.5	80	2900	300-600-20-55	600	20	55	300	980
80-40-7-2.2	40	7	2.2	80	1450	300-800-20-75	800	20	75	300	980
80-43-13-3	43	13	3	80	2900	300-950-20-90	950	20	90	300	980
80-40-15-4	40	15	4	80	2900	300-1000-25-110	1000	25	110	300	980
80-65-25-7.5	65	25	7.5	80	2900	300-1100-10-55	1100	10	55	300	980
100-80-10-4	80	10		100	1450	350-1500-15-90	1500	15	90	350	980
100-110-10-5.5	110	10	5.5	100	1450	350-1200-18-90	1200	18	90	350	980
100-100-15-7.5	100	15	7.5	100	1450	350-1100-28-132	1100	28	132	350	740
100-80-20-7.5	80	20	7.5	100	1450	350-1000-36-160	1000	36	160	350	740
100-100-25-11	100	25	11	100	1450	400-1760-7.5-55	1760	7.5	55	400	580
100-100-30-15	100	30	15	100	1450	400-1500-10-75	1500	10	75	400	980
100-100-35-18.5	100	35	18.5	100	1450	400-2000-15-132	2000	15	132	400	740
125-100-15-11	100	15	11	125	1450	400-1700-22-160	1700	22	160	400	740
125-130-20-15	130	20	15	125	1450	400-1500-26-160	1500	26	160	400	740
150-145-9-7	145	9	7.5	150	1450	400-1700-30-200	1700	30	200	400	740
150-180-15-15	180	15	15	150	1450	400-1800-32-250	1800	32	250	400	740
150-180-20-18.5	180	20	18.5	150	1450	500-2500-10-110	2500	10	110	500	740
150-180-25-22	180	25	22	150	1450	500-2600-16-160	2600	16	160	500	740
150-130-30-22	130	30	22	150	1450	500-2400-22-220	2400	22	220	500	740
150-130-30-30	180	30	30	150	1450	500-2600-22-220	2600	24	250	500	740
